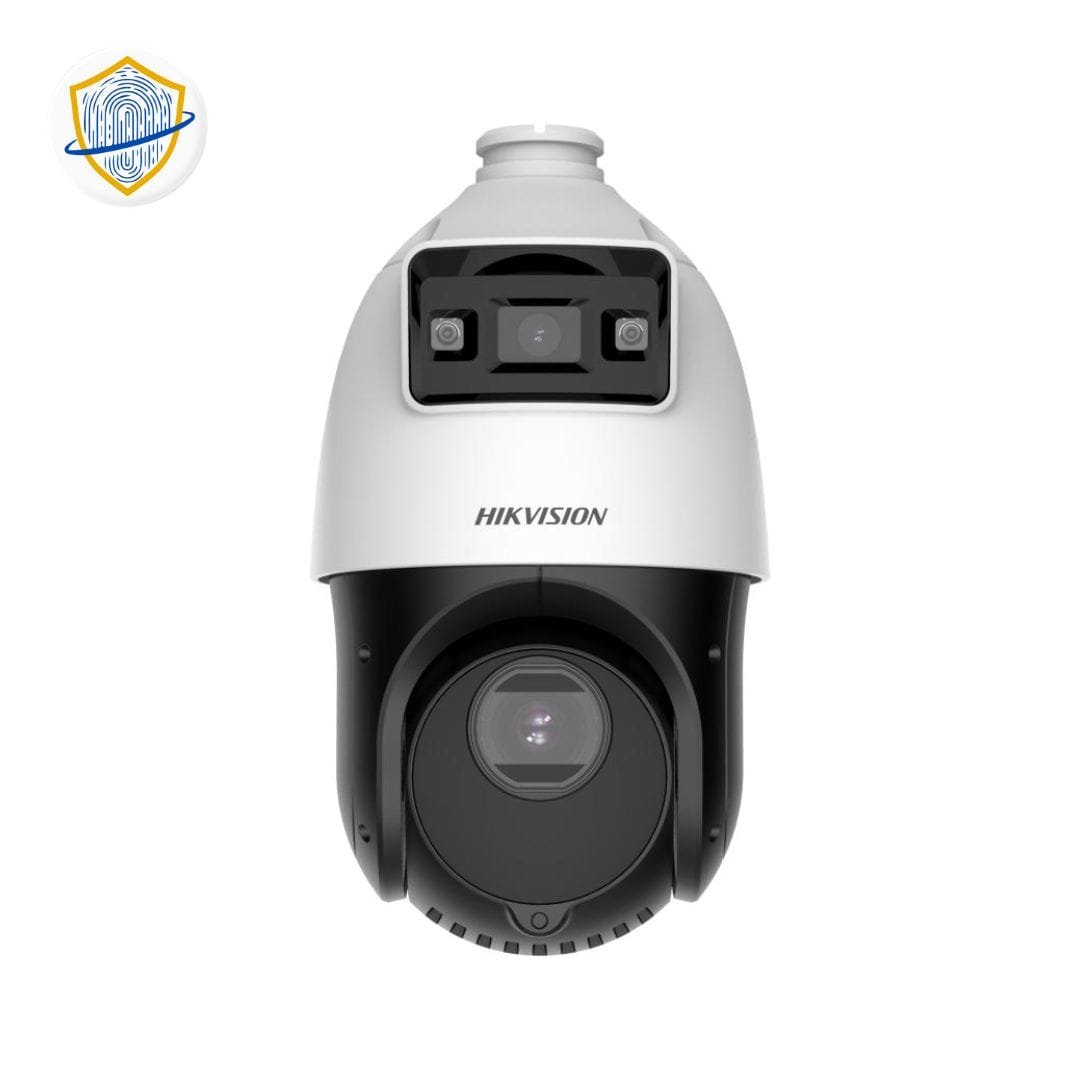

DS-2SE4C425MWG-E/14(F0) | TandemVu 4-inch 4 MP 25X Colorful & IR Network Speed Dome

Description 1. Image Sensor Bullet channel: Utilizes a 1/3″ Progressive Scan CMOS sensor. PTZ channel: Features a 1/2.8″ progressive scan CMOS sensor. 2. Maximum Resolution Bullet channel: Offers a maximum resolution of 2560 × 1440 pixels. PTZ channel: Provides a maximum resolution of 2560 × 1440 pixels. 3. Minimum Illumination Bullet channel: Achieves 0.0005 Lux @ (F1.0, AGC ON), with 0 Lux in illuminated conditions. PTZ channel: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR illumination. 4. Shutter Speed Supports shutter speeds ranging from 1 second to 1/30,000 seconds. 5. Day & Night Functionality Integrated ICR (Infrared Cut Filter Removable) for seamless day and night switching. 6. Zoom Capability PTZ channel: Offers 25 × optical zoom and 16 × digital zoom. 7. Lens Specifications Bullet channel: Focal length of 2.8 mm. PTZ channel: Focal length ranging from 4.8 mm to 120 mm, with 25 × optical zoom. 8. Field of View (FOV) Bullet channel: Horizontal FOV: 96.1°, Vertical FOV: 52.1°, Diagonal FOV: 113.3°. PTZ channel: Horizontal FOV: 55° to 2.4° (wide-tele). Vertical FOV: 33° to 1.4° (wide-tele). Diagonal FOV: 61.5° to 2.8° (wide-tele). 9. Focus Supports semi-auto, manual, and autofocus modes.ra 10. Aperture Bullet channel: F1.0. PTZ channel: F1.6. 11. Zoom Speed PTZ channel: Approximately 3.6 seconds for zoom operation. 12. Illuminator Bullet channel: White Light, up to 30 meters. PTZ channel: IR, with a range of up to 100 meters. 13. PTZ Functionality Movement Range (Pan): 360°. Movement Range (Tilt): -15° to 90° (with auto flip). Adjustable pan and tilt speeds with presets. 14. Video Streaming Supports mainstream and sub-stream with various frame rates and resolutions. 15. Video Compression H.265, H.264, MJPEG compression formats supported. 16. Audio Capabilities Various audio compression formats with adjustable bit rates and sampling rates. 17. Network Connectivity Supports a wide range of network protocols and simultaneous live view for up to 20 users. 18. Image Processing Image parameters switch and settings for sharpness, saturation, brightness, and contrast. Wide Dynamic Range (WDR) up to 120 dB, Digital Defog, and Image Stabilization. 19. Privacy and Security Privacy mask with programmable polygon masks. Robust security measures including authenticated access and encryption. 20. Physical Specifications Dimensions: Ø 166 mm × 375 mm (Ø 6.5″ × 14.7″). Weight: Approximately 2.4 kg (13.2 lb.). 21. Operating Conditions Operating temperature: -30℃ to 65℃ (-22°F to 149°F), humidity lower than 90% RH. 22. General Functions Mirror, password protection, watermark, and IP address filter. Demist feature for heating the glass. 23. Power Consumption Maximum power consumption of 24 W, including power for heater and supplemental light. 24. Approval and Protection Complies with IP66 Standard and offers protection against lightning, surge, and voltage transients.
