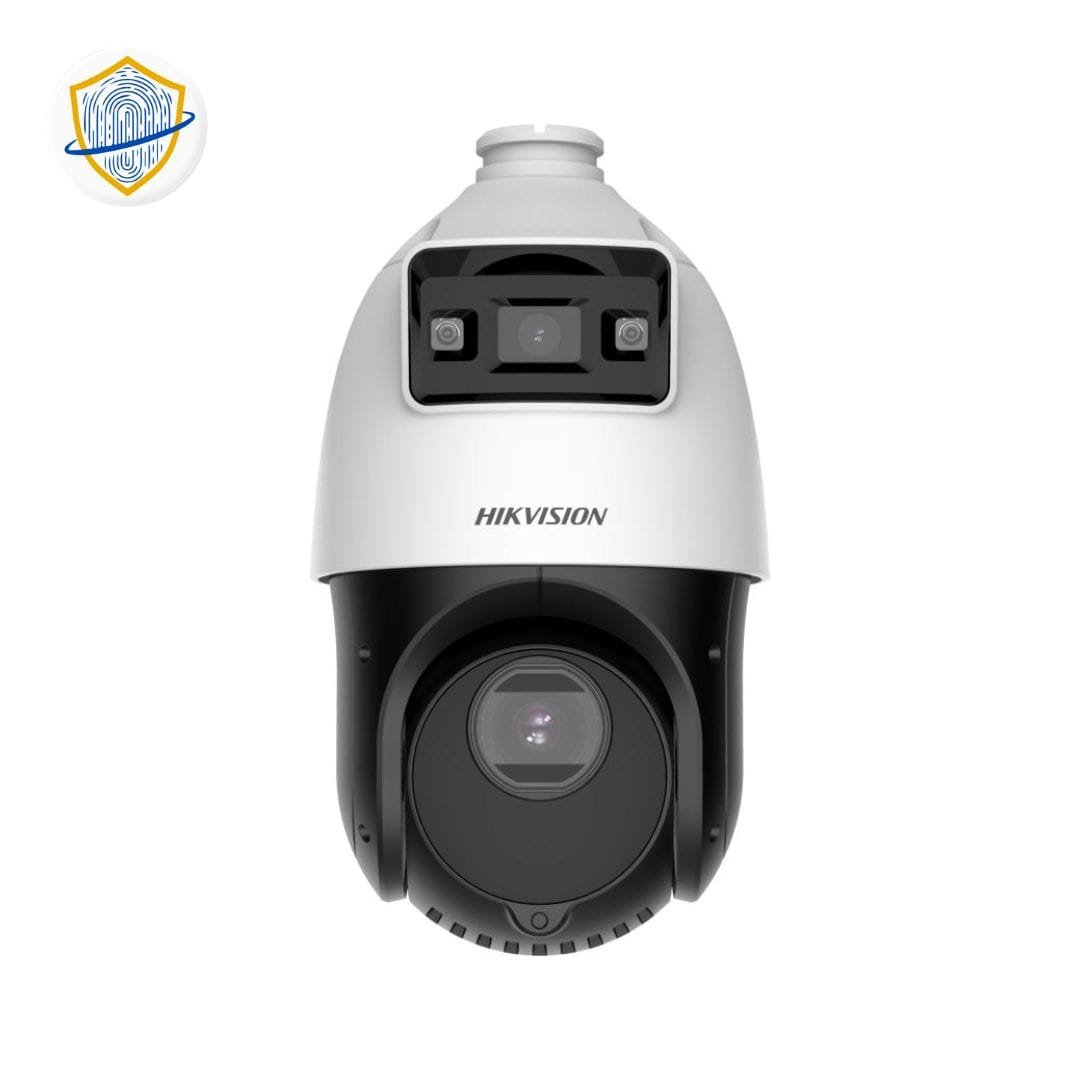

DS-2SE4C215MWG-E/12(F0) | TandemVu 4-inch 2 MP 15X Colorful & IR Network Speed Dome

Description 1. Camera 1.1 Image Sensor Bullet channel: 1/2.8″ Progressive Scan CMOS PTZ channel: 1/2.8″ Progressive Scan CMOS 1.2 Max. Resolution Bullet channel: 1920 × 1080 PTZ channel: 1920 × 1080 1.3 Min. Illumination Bullet channel: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light PTZ channel: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR 1.4 Shutter Speed Ranges from 1 s to 1/30,000 s. 1.5 Day & Night ICR for both channels. 1.6 Zoom PTZ channel: 15 × optical, 16 × digital zoom. 1.7 Slow Shutter Supports slow shutter functionality. 1.8 Lens Bullet channel: 2.8 mm PTZ channel: 5 to 75 mm, 15 × optical 1.9 Illuminator PTZ channel: IR Bullet channel: White Light 2. PTZ Functionality 2.1 Movement Range Pan: 360° Tilt: -15° to 90° (auto flip) 2.2 Speed Configurable pan and tilt speeds. 2.3 Presets and Scanning Supports up to 300 presets. Includes patrols, pattern scans, and other scanning options. 3. Video and Audio Capabilities 3.1 Video Streaming Main Stream: Supports various frame rates and resolutions. Compression: H.265, H.264, MJPEG 3.2 Audio Supports multiple compression formats, bit rates, and sampling rates. 4. Network Connectivity 4.1 Protocols DHCP, FTP, HTTPS, TCP/IP, and more. Simultaneous live view for up to 20 channels. 4.2 Security Includes 802.1X authentication, MAC address binding, and HTTPS encryption. 5. Image Processing 5.1 Image Settings Adjustable parameters include sharpness, saturation, brightness, and contrast. 5.2 Day/Night Switch Offers day, night, auto, and scheduled-switch modes. 5.3 Wide Dynamic Range (WDR) Provides 120 dB WDR for enhanced image quality in challenging lighting conditions. 6. Physical Specifications 6.1 Dimension and Weight Ø 166 mm × 375 mm, Approx. 2.4 kg. 6.2 Operating Conditions Temperature range: -30°C to 65°C, Humidity: lower than 90%RH. 7. Compliance and Protection 7.1 Approval IP66 protection rating, TVS 6000V lightning protection, surge protection, and voltage transient protection. 7.2 General Function Includes mirror, password protection, watermark, and IP address filter. 7.3 Demist Functionality Features demist by heating the glass to maintain clear visibility in adverse weather conditions. 8. Power Consumption Maximum power consumption: 24 W, including power for a heater and supplement light. This comprehensive surveillance camera system offers advanced features such as PTZ functionality, smart supplement light, deep learning functions, and robust network connectivity, making it suitable for a wide range of surveillance applications in various environments.
