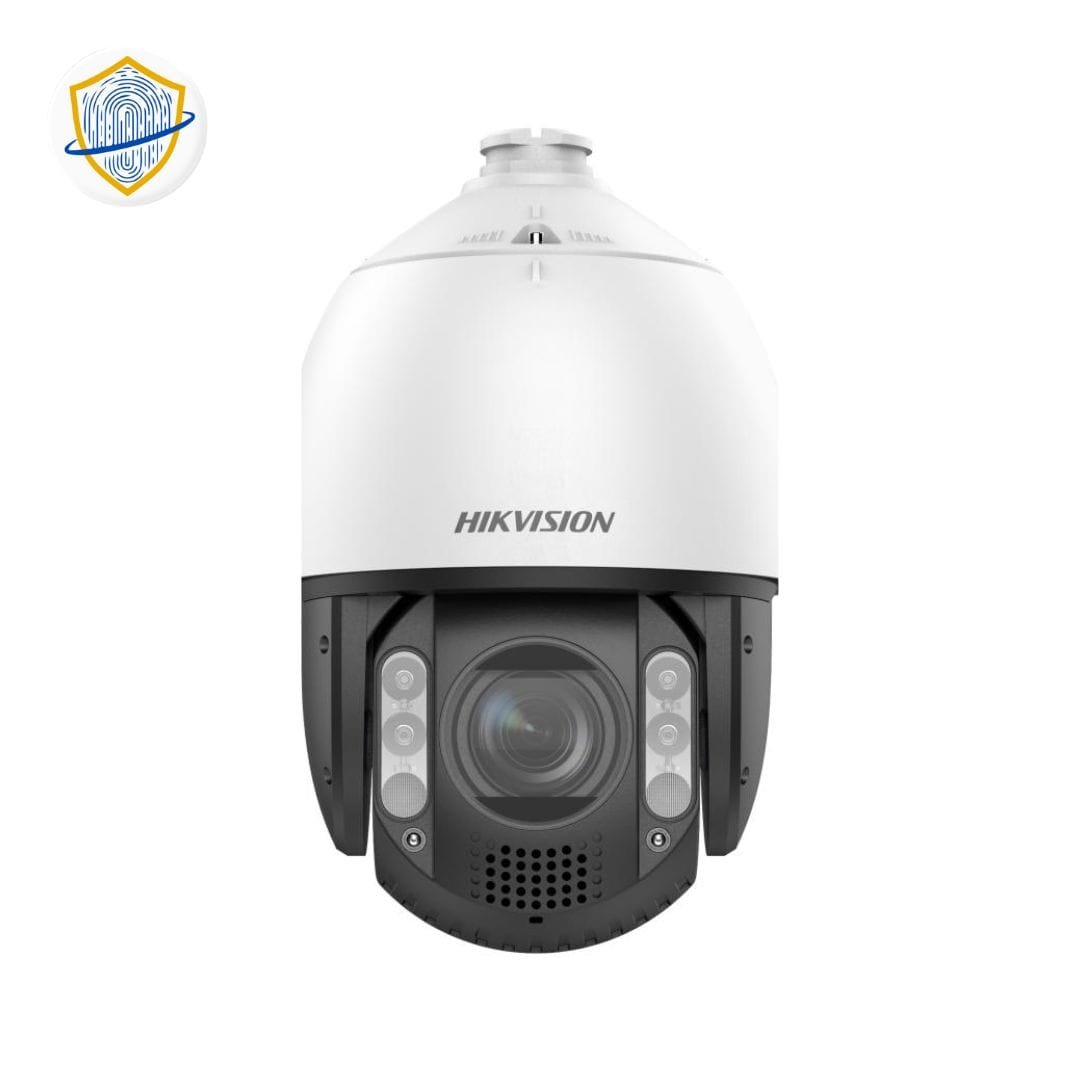

DS-2DE7A812MCG-EB | 7-inch 8 MP 12X ColorVu Network Speed Dome

Description Overview of Surveillance Camera System 1. Camera Specifications 1.1 Image Sensor Utilizes a 1/1.8″ progressive scan CMOS sensor. 1.2 Max. Resolution Offers a maximum resolution of 3840 × 2160 pixels. 1.3 Min. Illumination Color: 0.0005Lux @ (F1.2, AGC ON) B/W: 0.0001Lux @ (F1.2, AGC ON) 0 lux with light 1.4 Shutter Speed Ranges from 1/1 s to 1/30000 s. 1.5 Day & Night Features an IR cut filter for seamless day and night operation. 1.6 Zoom 12 × optical, 64 × digital zoom capabilities. 1.7 Slow Shutter Supports slow shutter functionality. 1.8 Lens Focal length: 6.7 mm to 80.4 mm FOV: Horizontal – 53° to 8.1°, Vertical – 31.3° to 4.6°, Diagonal – 59.6° to 9.3° 1.9 Focus Auto, semi-auto, and manual focus options are available. 1.10 Aperture Maximum aperture of F1.2. 1.11 Illuminator Hybrid (IR and White Light) supplement light type. White light range: up to 100 m. IR range: up to 150 m. 2. PTZ Functionality 2.1 Movement Range Pan: 360° Tilt: -15° to 90° (auto flip) 2.2 Speed Configurable pan speed: 0.1° to 160°/s Configurable tilt speed: 0.1° to 120°/s 2.3 Presets and Scanning Supports up to 300 presets. Includes 8 patrols and 4 pattern scans. 3. Video and Audio Capabilities 3.1 Video Streaming Main Stream: 50 Hz (25 fps), 60 Hz (24 fps) with various resolutions. Compression: H.265 /H.265/H.264 /H.264 3.2 Audio Supports multiple compression formats and sampling rates. 4. Network Connectivity 4.1 Protocols IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, and more. Simultaneous live view for up to 20 channels. 4.2 Security Password protection, HTTPS encryption, and 802.1X authentication. 5. Image Processing 5.1 Image Settings Adjustable parameters include saturation, brightness, contrast, sharpness, gain, and white balance. 5.2 Day/Night Switch Supports various modes including Day, Night, Auto, and Schedule. 6. Physical Specifications 6.1 Dimension and Weight Ø 220 mm × 357.3 mm, Approx. 5.5 kg. 6.2 Operating Conditions Temperature range: -30 °C to 65 °C, Humidity: 90% or less. 7. Compliance and Protection 7.1 Approval Compliance with EMC, and safety standards such as UL, CB, CE-LVD, BIS, and more. 7.2 Protection IP66 and IK10 ratings, TVS 6000V lightning protection, surge protection, and voltage transient protection. This surveillance camera system offers comprehensive features for advanced surveillance needs while ensuring reliability, security, and durability.
