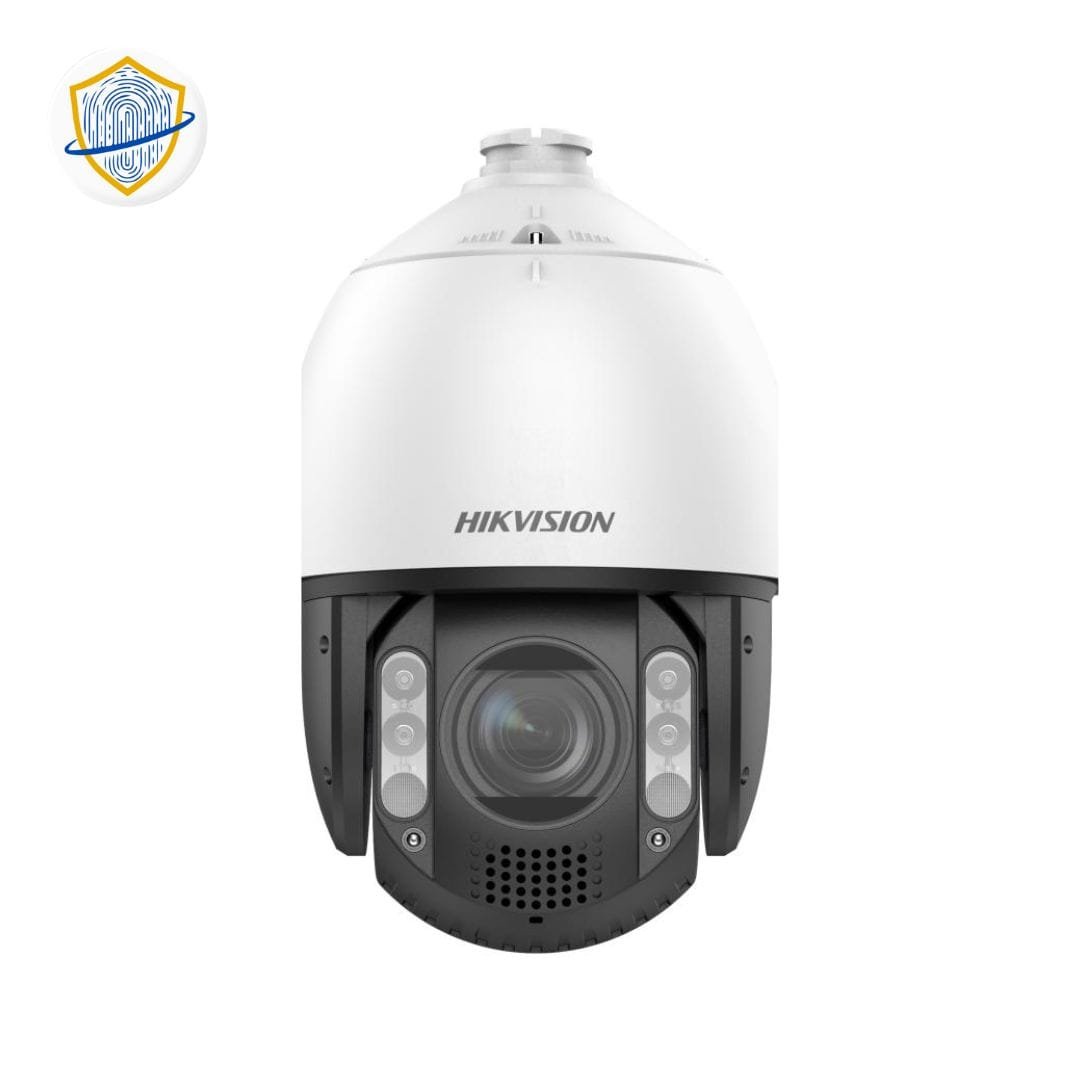

DS-2DE7A220MCG-EB | 7-inch 2 MP 20X ColorVu Network Speed Dome

Description Camera Specifications Image Sensor 1/1.8″ Progressive Scan CMOS Max. Resolution 1920 × 1080 Low Light Performance Color: 0.0005Lux @ (F1.2, AGC ON) B/W: 0.0001Lux @ (F1.2, AGC ON) 0 lux with light Shutter Speed Range: 1/1 s to 1/30000 s Day & Night Mode IR Cut Filter Ensures optimal image quality in both day and night conditions. Zoom 20 × optical, 16 × digital Slow Shutter Supported Lens Details Focal Length 6.7 mm to 134 mm Field of View (FOV) Horizontal: 53° to 4.9° (wide-tele) Vertical: 31.3° to 2.7° (wide-tele) Diagonal: 59.6° to 5.6° (wide-tele) Focus Auto, semi-auto, manual Aperture Max. F1.2 Zoom Speed Approx. 7 s Illuminator Supplement Light Type Hybrid (IR and White Light) Supplement Light Range White light: up to 100 m IR: up to 150 m PTZ Features Movement Range (Pan/Tilt) Pan: 360° Tilt: -15° to 90° (auto flip) Speed Control Pan speed: configurable from 0.1° to 160°/s Tilt speed: configurable from 0.1° to 120°/s Presets Supports 300 presets Video Main Stream 50 Hz: 25 fps 60 Hz: 24 fps Resolutions: 1920 × 1080, 1280 × 960, 1280 × 720 Video Compression H.265 /H.265/H.264 /H.264 for main stream H.265/H.264/MJPEG for sub-stream H.265/H.264/MJPEG for the third stream Video Bit Rate Range: 32 kbps to 16384 kbps Network Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, etc. Simultaneous Live View Up to 20 channels Security Password protection, HTTPS encryption, 802.1X authentication, IP address filter, etc. Audio Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, AAC-LC, etc. Audio Bit Rate Varies based on compression type Image Features Image Settings Saturation, brightness, contrast, sharpness, gain, white balance adjustable Day/Night Switch Supports various modes including day, night, auto, and scheduled switch. Wide Dynamic Range (WDR) 120 dB SNR 52 dB Interface Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, supports microSD/SDHC/SDXC card, up to 256 GB Built-In Speaker 1 built-in speaker with effective distance reaching max. 30 meters Alarm 2 inputs, 1 output General Power 24 VAC, max. 42 W (including max. 12 W for IR and max. 2 W for heater); Hi-PoE Dimension and Weight Ø 220 mm × 357.3 mm, Approx. 5.5 kg Operating Condition Temperature: -30 °C to 65 °C, Humidity: <90%RH Protection IP66, IK10, TVS 6000V lightning protection, surge protection, voltage transient protection
