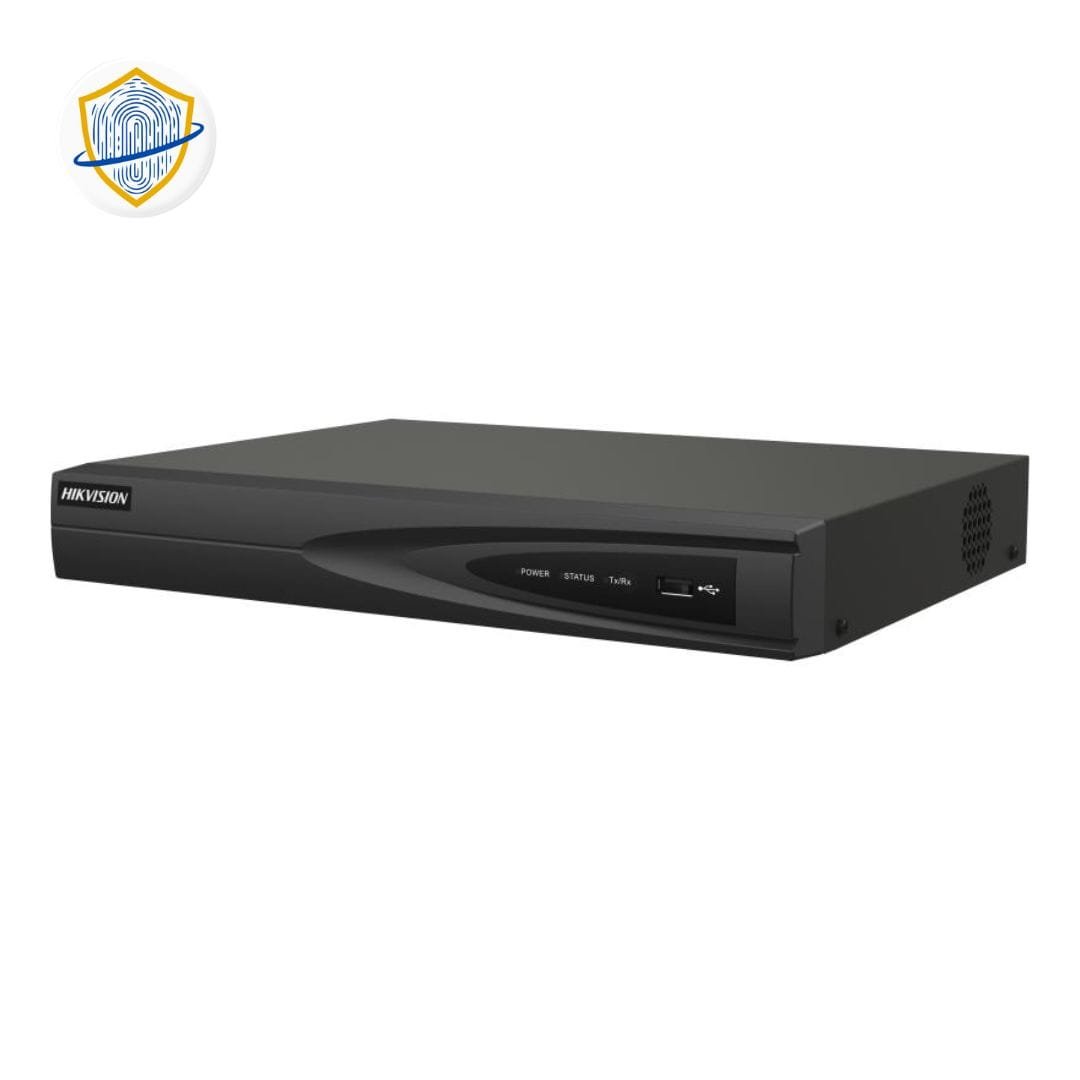

DS-7604NI-Q1/4P | 4-ch 1U 4 PoE 4K NVR

Description Motion Detection and Video Analysis System Motion Detection and Analysis Motion Detection 2.0: Incorporates advanced motion detection technology. Human/Vehicle Analysis: Recognizes and analyzes human and vehicle movements. Video and Audio Inputs IP Video Input: 4-ch Incoming Bandwidth: 40 Mbps Outgoing Bandwidth: 80 Mbps HDMI and VGA Output HDMI Output: 1-ch, 4K (4096 x 2160)/30 Hz 4K (3840 x 2160)/30 Hz 2K (2560 x 1440)/60 Hz 1920 x 1080/60 Hz 1600 x 1200/60 Hz 1280 x 1024/60 Hz 1280 x 720/60 Hz HDMI/VGA simultaneous output 1-ch, 4K（4096×2160）/30Hz 4K (3840×2160) /30Hz 2K（2560×1440）/60Hz 1920×1080/60Hz 1600×1200/60Hz 1280×1024/60Hz 1280×720/60Hz HDMI/VGA simultaneous output 1-ch, 4K (3840 × 2160)/30Hz 1920 × 1080p/60Hz 1600 × 1200/60Hz 1280 × 1024/60Hz 1280 × 720/60Hz 1024 × 768/60Hz HDMI/VGA simultaneous output 1-ch, 4K（4096×2160）/30Hz 4K (3840×2160) /30Hz 2K（2560×1440）/60Hz 1920×1080/60Hz 1600×1200/60Hz 1280×1024/60Hz 1280×720/60Hz HDMI/VGA simultaneous output VGA Output: 1-ch, 1920 × 1080p/60Hz 1600 × 1200/60Hz 1280 × 1024/60Hz 1280 × 720/60Hz 1024 × 768/60Hz HDMI/VGA simultaneous output 1-ch, 1920 × 1080/60 Hz 1280 × 1024/60 Hz 1280 × 720/60 Hz 1-ch, 1920 × 1080p/60Hz 1600 × 1200/60Hz 1280 × 1024/60Hz 1280 × 720/60Hz 1024 × 768/60Hz HDMI/VGA simultaneous output 1-ch, 1920 × 1080/60 Hz 1280 × 1024/60 Hz 1280 × 720/60 Hz 1-ch, 1920*1080/60Hz 1280*1024/60Hz 1280*720/60Hz HDMI/VGA simultaneous output Audio Features Audio Output: 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω) Decoding Capabilities Decoding Format: H.265 ,H.265,H.264 ,H.264 Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Decoding Capability: 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) Synchronous Playback: 4-ch Network Connectivity Remote Connection: 32 Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface Power and General Information PoE Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface Power Supply: 48 VDC, 1.35 A Power Consumption: ≤ 10 W (without HDD, and PoE off) Working Temperature: -10 to 55º C ( 14 to 131º F) Working Humidity: 10% to 90% Dimensions (W × D × H): 320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″) Weight: ≤ 1 kg (without HDD, 2.2 lb.) Certification FCC: Part 15 Subpart B, ANSI C63.4-2014 CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
