$66.54
$116.44

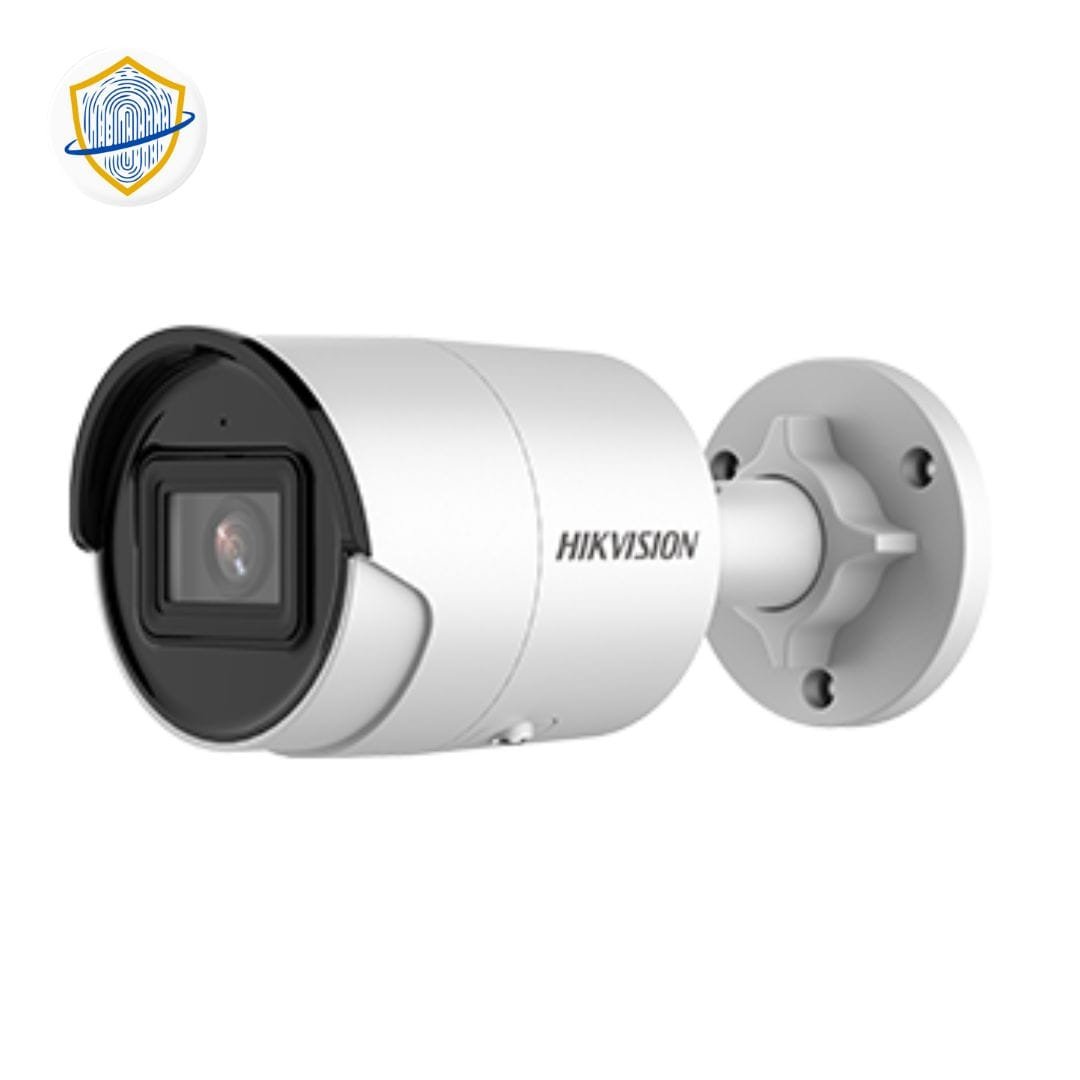

Description Camera Specifications: Image Sensor: 1/1.8″ Progressive Scan CMOS Max. Resolution: 3840 × 2160 Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON) B/W: 0 Lux with IR Shutter Time: 1/3 s to 1/100,000 s Day & Night: IR cut filter Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° Lens: Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: 2.8 mm: Horizontal FOV 111°, Vertical FOV 59°, Diagonal FOV 131° 4 mm: Horizontal FOV 87°, Vertical FOV 47°, Diagonal FOV 102° 6 mm: Horizontal FOV 51°, Vertical FOV 28°, Diagonal FOV 60° Lens Mount: M12 Iris Type: Fixed Aperture: F1.6 DORI: 2.8 mm: Detection: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m 4 mm: Detection: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m 6 mm: Detection: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m Illuminator: Supplement Light Type: IR Supplement Light Range: Up to 40 m Smart Supplement Light: Yes IR Wavelength: 850 nm Video: Main Stream: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) (Third stream is supported under certain settings.) Video Compression: Main stream: H.265/H.264/H.264 /H.265 , Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 (Third stream is supported under certain settings.) Video Bit Rate: 32 Kbps to 16 Mbps H.264 Type: Baseline Profile/Main Profile/High Profile H.265 Type: Main Profile Bit Rate Control: CBR/VBR Scalable Video Coding (SVC): H.264 and H.265 encoding Region Of Interest (ROI): 1 fixed region for mainstream and sub-stream Target Cropping: Yes Audio: Audio Type: Mono sound Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Network: Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP Simultaneous Live View: Up to 6 channels API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK User/Host: Up to 32 users. 3 user levels: administrator, operator, and user Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication, TLS 1.1/1.2, WSSE and digest authentication Network Storage: MicroSD/SDHC/SDXC card (256 GB) local storage, NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Supports memory card encryption and health detection with high-end Hikvision memory card Client: iVMS-4200, Hik-Connect, Hik-Central Web Browser: Plug-in Required Live View: IE 10 Plug-in Free Live View: Chrome 57.0 , Firefox 52.0 Local Service: Chrome 57.0 , Firefox 52.0 Image: Image Parameters Switch: Yes Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Day/Night Switch: Day, Night, Auto, Schedule Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB Image Enhancement: BLC, HLC, 3D DNR Interface: Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage: Built-in micro SD, up to 256 GB Built-In Microphone: Yes Reset Key: Yes Event: Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types – human and vehicle), scene change detection Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture Deep Learning Function: Face Capture: Yes General: Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7.2 W Dimension: Ø70 mm × 161.7 mm (Ø2.8″ × 6.37″) Package Dimension: 216 mm × 121 × 118 mm (8.5″ × 4.8″ × 4.6″) Weight: Approx. 485 g (1.1 lb.), With Package Weight: Approx. 749 g (1.6 lb.) Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Language: Supports 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter Approval: EMC: CE-EMC, RCM, KC Safety: UL, CB, CE-LVD Environment: CE-RoHS, WEEE, Reach Protection: IP67
