$53.41
$73.7

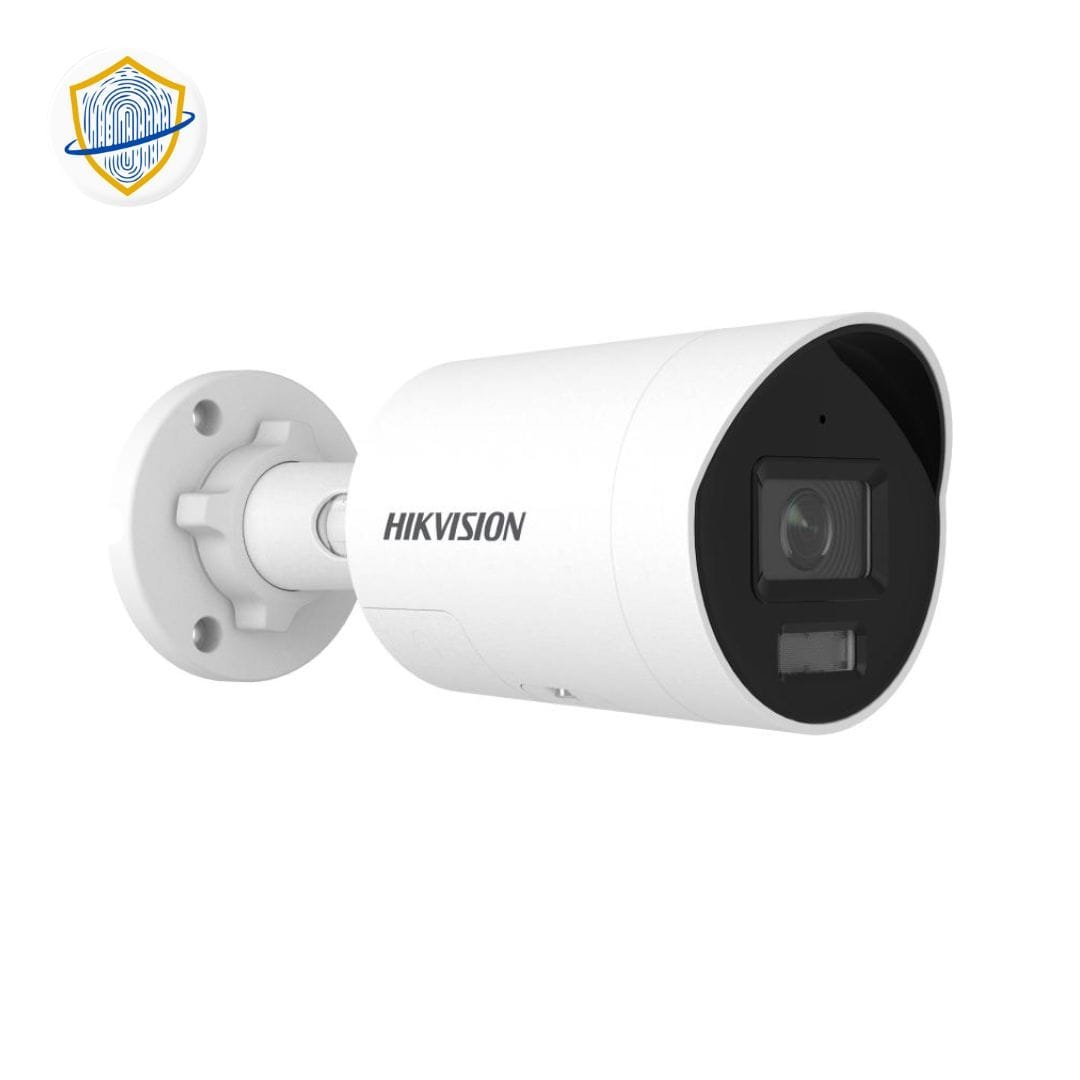

Description Camera Specifications: Image Sensor: 1/2.8″ Progressive Scan CMOS Max. Resolution: 1920 × 1080 Min. Illumination: Color: 0.002 Lux @ (F1.4, AGC ON) B/W: 0 Lux with IR Shutter Time: 1/3 s to 1/100,000 s Day & Night: IR cut filter Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° Lens: Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: 2.8 mm: Horizontal FOV 107°, Vertical FOV 57°, Diagonal FOV 129° 4 mm: Horizontal FOV 86°, Vertical FOV 47°, Diagonal FOV 102° 6 mm: Horizontal FOV 55°, Vertical FOV 29°, Diagonal FOV 65° Lens Mount: M12 Iris Type: Fixed Aperture: F1.4 Depth Of Field: 2.8 mm: 1.1 m to ∞ 4 mm: 1.2 m to ∞ 6 mm: 3 m to ∞ DORI: 2.8 mm: Detection: 44 m Observation: 17 m Recognition: 9 m Identification: 4 m 4 mm: Detection: 53 m Observation: 21 m Recognition: 11 m Identification: 5 m 6 mm: Detection: 87 m Observation: 34 m Recognition: 17 m Identification: 9 m Illuminator: Supplement Light Type: IR Supplement Light Range: Up to 40 m Smart Supplement Light: Yes IR Wavelength: 850 nm Video: Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) (Third stream is supported under certain settings.) Video Compression: Main stream: H.265/H.264/H.264 /H.265 , Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 Video Bit Rate: 32 Kbps to 8 Mbps H.264 Type: Baseline Profile, Main Profile, High Profile H.265 Type: Main Profile Bit Rate Control: CBR, VBR Scalable Video Coding (SVC): H.264 and H.265 encoding Region Of Interest (ROI): 1 fixed region(s) for mainstream and sub-stream Audio: Audio Type: Mono sound Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: Yes Network: Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP Simultaneous Live View: Up to 6 channels API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Smooth Streaming: Yes User/Host: Up to 32 users, 3 user levels: administrator, operator, and user Security: Password Protection: Yes Encryption: HTTPS encryption, 802.1X authentication, TLS 1.3, host authentication Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) Image: Image Parameters Switch: Yes Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance Day/Night Switch: Day, Night, Auto, Schedule Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB Image Enhancement: BLC, HLC, 3D DNR Privacy Mask: Yes Interface: Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB Built-In Microphone: Yes Built-In Speaker: Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB Reset Key: Yes Event: Basic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light Deep Learning Function: Face Capture General: Power: 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 8 W Material: Metal Dimension: Ø74.4 mm × 179.2 mm (Ø2.9″ × 7.1″) Package Dimension: 234 mm × 120 mm × 117 mm (9.2″ × 4.7″ × 4.6″) Weight: Approx. 510 g (1.1 lb.), With Package Weight: Approx. 745 g (1.6 lb.) Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing) Language: Supports 33 languages General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter, flashing light Approval: EMC: FCC, CE-EMC, KC Safety: UL, CB, CE-LVD, BIS, LOA Environment: CE-RoHS, WEEE, Reach Protection: IP67
