$75.5
$135.15

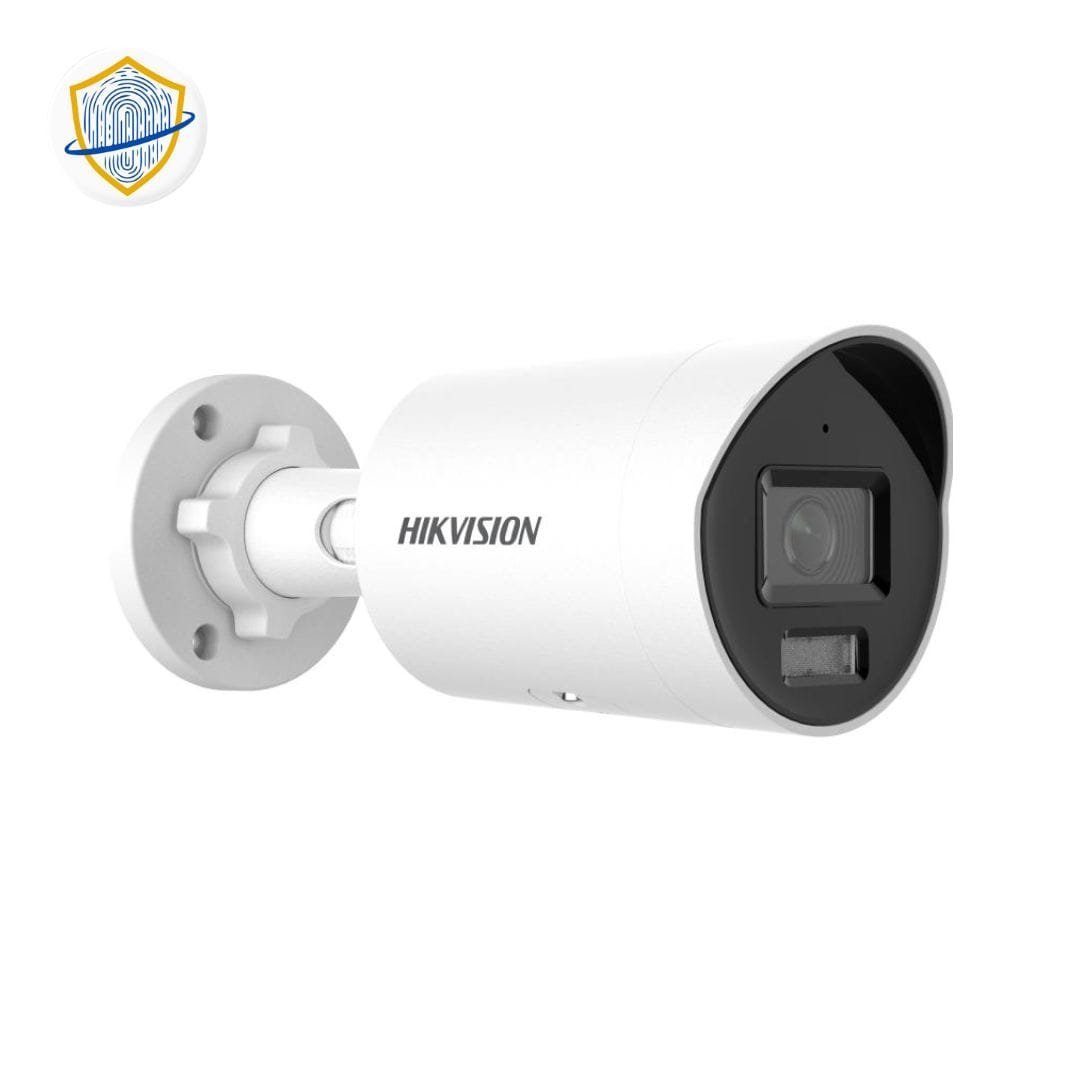

Description Camera Specifications: Image Sensor: 1/2.8″ Progressive Scan CMOS Max. Resolution: 1920 × 1080 Min. Illumination: Color: 0.002 Lux @ (F1.4, AGC ON) B/W: 0 Lux with IR Shutter Time: 1/3 s to 1/100,000 s Day & Night: IR cut filter Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° Lens: Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional Focal Length & FOV: 2.8 mm: Horizontal FOV 107°, Vertical FOV 57°, Diagonal FOV 129° 4 mm: Horizontal FOV 86°, Vertical FOV 47°, Diagonal FOV 102° 6 mm: Horizontal FOV 55°, Vertical FOV 29°, Diagonal FOV 65° Lens Mount: M12 Iris Type: Fixed Aperture: F1.4 Depth Of Field: 2.8 mm: 1.1 m to ∞ 4 mm: 1.2 m to ∞ 6 mm: 3 m to ∞ Illuminator: Supplement Light Type: IR Supplement Light Range: Up to 40 m Smart Supplement Light: Yes IR Wavelength: 850 nm Video: Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) (Third stream is supported under certain settings.) Video Compression: H.265/H.264/H.264 /H.265 Video Bit Rate: 32 Kbps to 8 Mbps Audio: Audio Type: -U: mono sound Audio Compression: -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering: -U: Yes Network: Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets Simultaneous Live View: Up to 6 channels API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Smooth Streaming: Yes User/Host: Up to 32 users, 3 user levels: administrator, operator, and user Security: Password Protection: Yes Encryption: HTTPS encryption, 802.1X authentication, TLS 1.3, host authentication Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) Image: Image Parameters Switch: Yes Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance Day/Night Switch: Day, Night, Auto, Schedule Wide Dynamic Range (WDR): 120 dB SNR: ≥ 52 dB Image Enhancement: BLC, HLC, 3D DNR Privacy Mask: Yes Interface: Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB Built-In Microphone: -U: Yes Reset Key: Yes Event: Basic Event: Motion detection, video tampering alarm, exception Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture Deep Learning Function: Face Capture: Yes General: Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7 W Material: Metal Dimension: Ø74.4 mm × 179.2 mm (Ø2.9″ × 7.1″) Package Dimension: 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″) Weight: Approx. 500 g (1.1 lb.) With Package Weight: Approx. 750 g (1.7 lb.) Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing) Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing) Language: Supports 33 languages General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter Approval: EMC, Safety, Environment Protection: IP67
