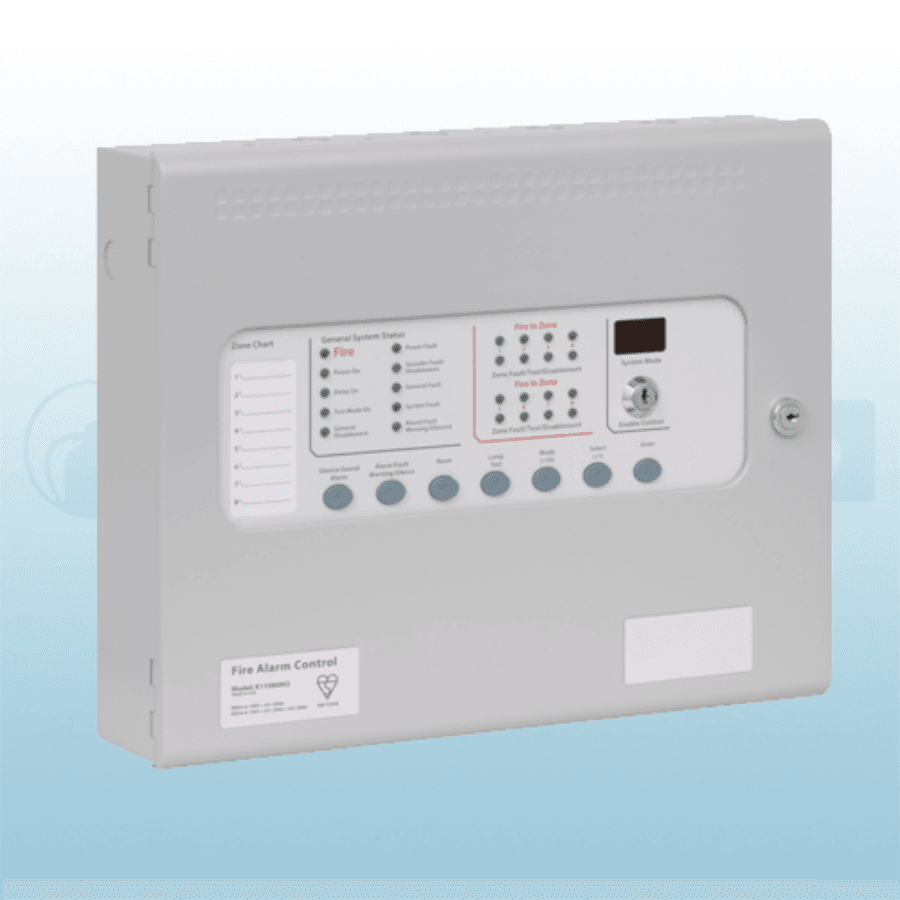

4 Zones Fire Detection Alarm System SIGMA PANEL FIREALARM

Description Description: Model No. Features T11040M2 4 Zones Conventional Fire Detection Alarm System Panel Sigma CP T11 Kentec System Overview: Specification Details System Certification Fully certified to BS EN54-2 and BS EN54-4 Zones 2-wire Versions available in 2, 4, or 8 zones Compatibility Compatible for use on BS5839: Part 1: 2002 installations Programmability Fully programmable using simple menu options Sounder Options Adjustable sounder delay time, configuration options Zonal Sounder Delay Detectors only, call points only Coincidence Input Selection Yes I.S Barrier Selection by Zone Yes Short Circuit Fire by Zone Yes Non-latching Zones Yes Silent Zones Yes Zone Input Delay Yes General Panel Configuration Simple, single board construction, installer-friendly Device Compatibility Compatible with a wide range of fire detection devices Power Supply 3 Amp power supply, Auxiliary power output   Technical Specifications: | Construction | 1.2 mm mild sheet steel | | Finish | Epoxy powder coated | | Colour – Lid & Box | BS 00 A 05 grey – fine texture | | Colour – Control Plate & Labels | RAL 7047 light grey – satin | | Supply Voltage | 230 VAC ( 10%/-15%) | | Mains Supply Fuse | 1.6 A 250V | | Power Supply DC Rating | 24V 3A | | Maximum Battery Size | 7Ah 12V (2 per panel) | | Fault Contact Rating | 30 VDC 1A | | Local Fire Contact Rating | 30 VDC 1A | | Fire Contact Rating | 30 VDC 1A | | Sounder Output Rating | 0.5A per output (Max 1.6A over all outputs) | | Detection Zone Current | 1.6 mA | | Detection Zone EOL Resistor | 6K8 5% | | Active EOL | K14606K (optional) | | Sounder Output EOL Resistor | 10K 5% | | Cable Capacity | 2.5 mm² | | Operating Temperature | -5°C to 50°C | | Operating Humidity | < 95% (non-condensing) | | Dimensions | 385 mm x 310 mm x 90 mm | Current Ratings: Standby Current Alarm Current 2 Zones 0.065 A 0.15 A 4 Zones 0.075 A 0.30 A 8 Zones 0.093 A 0.63 A
