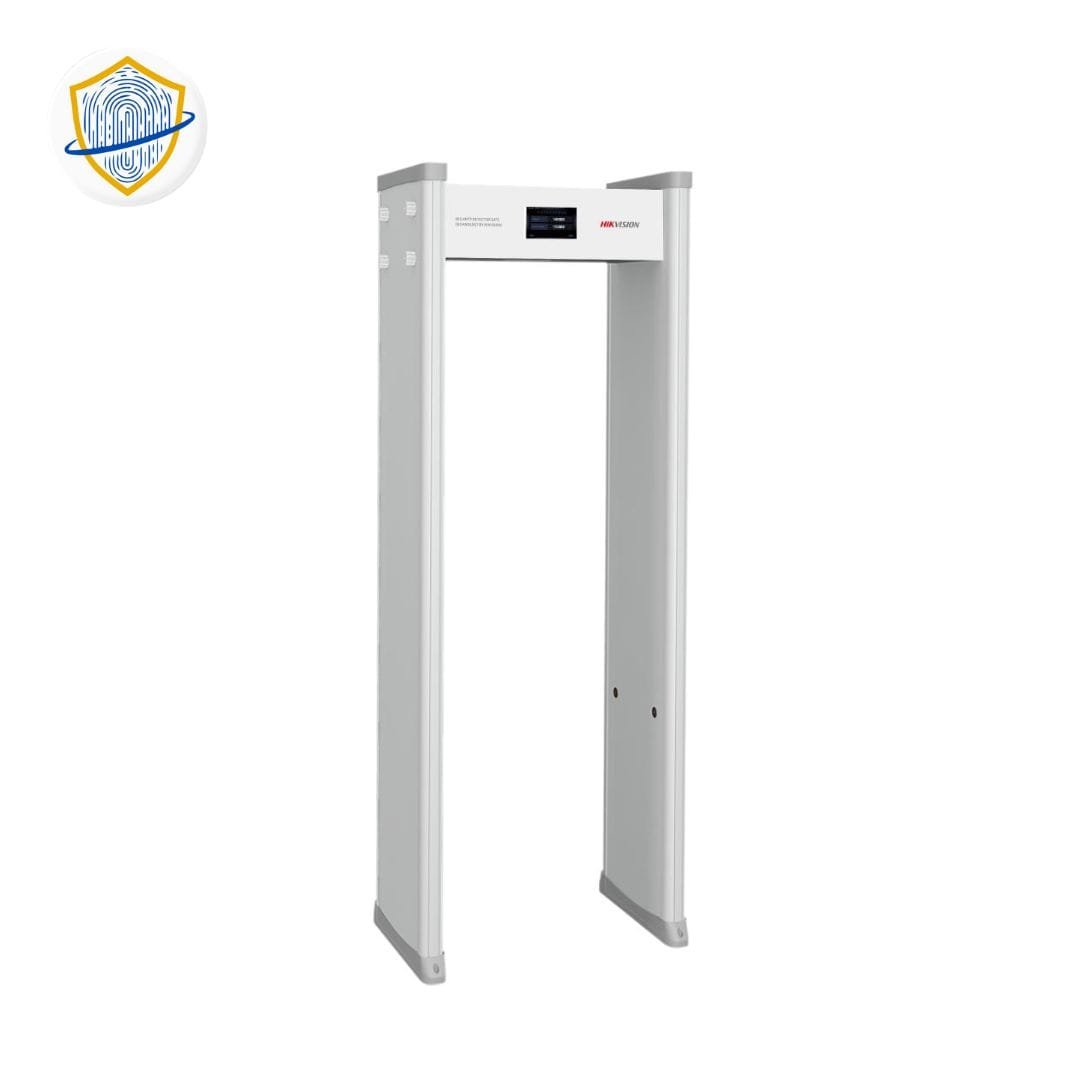

Description Dimension Parameters: Tunnel Size: 2000mm (H) x 710mm (W) x 500mm (D) Overall Dimensions: 2000mm (H) x 840mm (W) x 600mm (D) Specification Parameters: Operating Temperature: -20°C to 55°C Power: 220V Weight: Less than 75kg Other Details Networking Function: Supports single-machine networking and parameter configuration via the web terminal. Metal Detection: Capable of detecting metal objects the size of a 1 yuan coin, ensuring effective illegal item verification. Ultra-Low Detection Height: Metal objects above 3cm from the ground trigger alarms upon entering the detection area. Power-On Self-Diagnosis: Conducts system self-tests upon powering on and displays the results. 7-Inch Color LCD Display: Displays menu, passage count, and metal alarm information for user convenience. Multi-Zone Alarm Function: Alarms simultaneously for multiple metals at different body positions, with support for up to 18 zones. Modular Component Design: Facilitates easy transportation and maintenance. Flying Object Alarm Function: Accurately detects and alarms for metal objects thrown from the center of the door.
