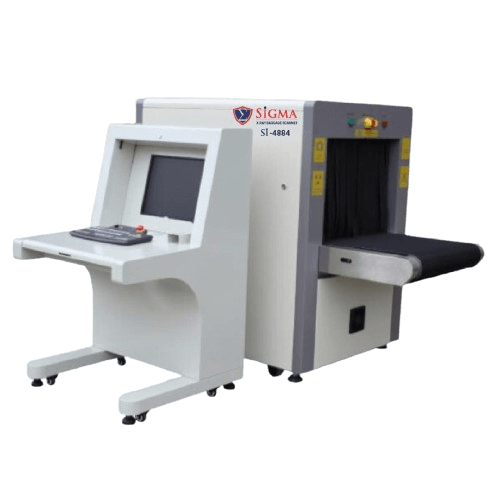

Description X-Ray Luggage Scanner Si-4884 Specifications Tunnel size: 650(w) x 500(H)mm. Net/Gross weight: 400kg / 450kg. Power supply:210~230V AC. Product Dimensions: 180 x 136 x 186 cm. Control interface: analog interface Tube voltage: 140-160 KV (adjustable) Tube current: 0.6-1.2 mA (adjustable) Cooling: sealed oil cooling, industrial fan cooling Work cycle: 100%, no need to warm up Protection function: over voltage, over current, over temperature protection Radiation Safety Leakage rate: < 0.5µGy/h (5cm from the outer shell) Single dose: < 5.0µGy Safety: Safety for film, chip, and electronics Radiation protection: The channel inlet and outlet of Luggage Scanner Si-4884 adopt 0.5mmPb double-layer environmental protection lead curtain protection, and the main body adopts 2-6mm lead plate protection to ensure that the peripheral radiation of the equipment meets national safety standards. X-Ray Generator Control interface: analog interface Tube voltage: 140-160 KV (adjustable) Tube current: 0.6~1.2 mA (adjustable) Cooling: sealed oil cooling, industrial fan cooling Work cycle: 100%, no need to warm up Protection function: over voltage, over current, over temperature protection IGMA X-Ray Baggage Scanner Physical Details Tunnel size: 650mm (W) x 500mm (H) Net/Gross weight: 400 kg / 450 kg Power supply: 210-230VAC Product dimension: 180x136x86 cm X-ray Generator Control interface: analog interface Tube voltage: 140 – 160 kV (adjustable) Tube current: 0.6 – 1.2 mA (adjustable) Cooling: sealed oil cooling, industrial fan cooling Work cycle: 100%, no need to warm up Protection function: over voltage, over current, over temperature protection Inspection Performance Max. Load Weight: 150 kg (331 lbs) Conveyor speed: Approx. 0.22m/s Steel penetration: 38 mm typical Space Resolution: Horizontal 1.0mm/vertical @ 1.0 mm Features Modularity: Modular design for improved anti-interference and easier maintenance. Digitization: Latest ASIC full digital design for high integration, strong anti-interference, and clear imaging. Intelligent: RTOS real-time image processing system, TIP dangerous goods insertion, dangerous goods auxiliary alarm, remote control management, image fast backup, and other emergency functions. Automation: One-button switch machine, infrared energy-saving induction, emergency alarm prompt, fault self-test, and other functions. Specialization: User-friendly system operation interface, convenient and practical image processing function, and customized special security keyboard for a professional user platform. Applications of Baggage Scanner Hold baggage inspection Cargo and freight inspection Customs and border inspection Passenger, visitor, and delivery checkpoints Scanning Effect
