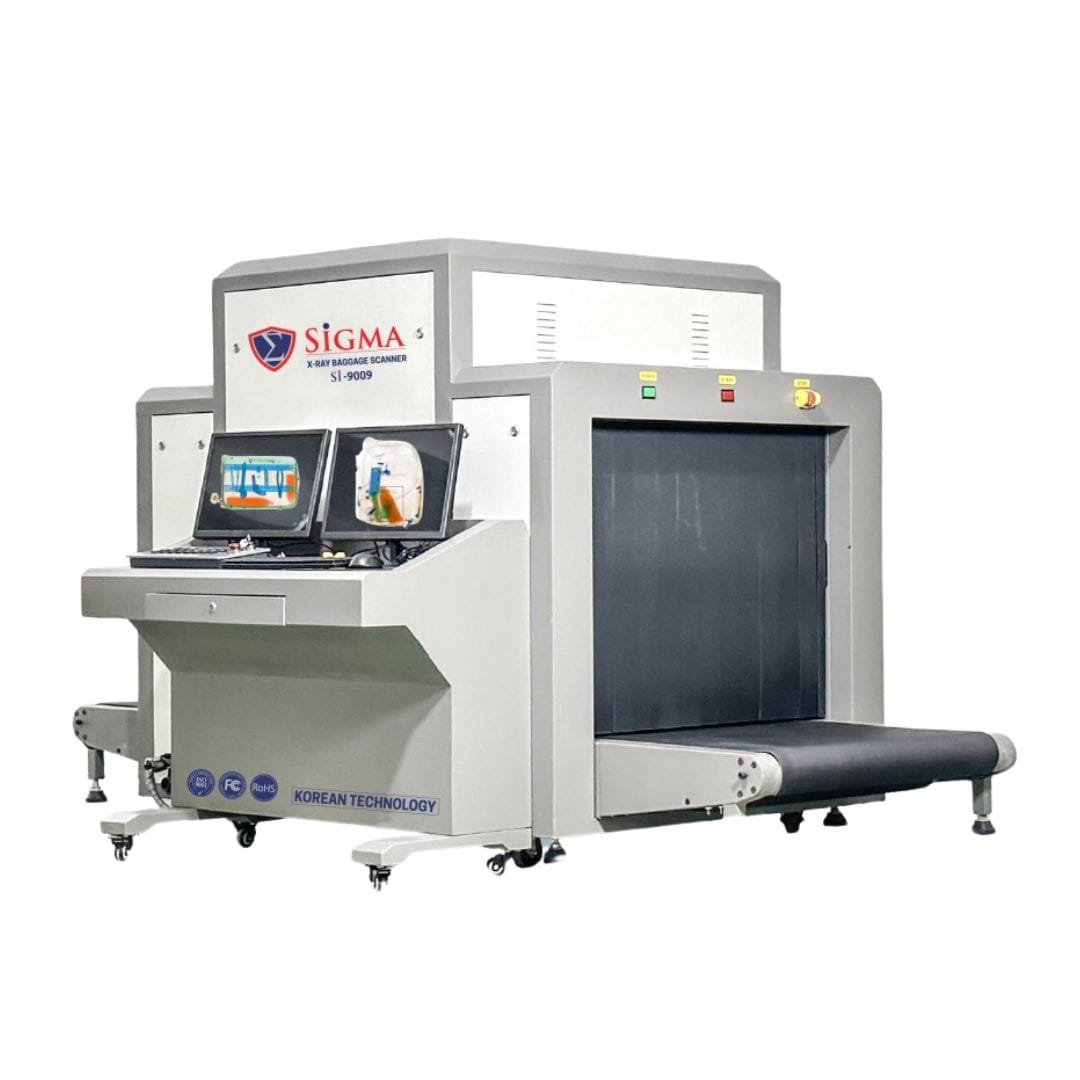

Description X-ray Inspection System Physical Details Tunnel size: 1000mm (W) x 1000mm (H) Power consumption: <0.5 kW/h Net/Gross weight: 1100 kg / 1200 kg Working temperature: -20°C to 60°C Storage temperature: -30°C to 70°C Humidity: 5% to 95%, non-condensing Power supply: 110-240VAC, 50/60±3Hz Product dimension: 3040mm (L) x 1290mm (W) x 1917mm (H) Package dimension: 2520mm (L) x 1500mm (W) x 2050mm (H) X-ray Generator X-ray tube head: Self-contained Tube voltage: 160kV Tube current: 0.2-1.0 mA (adjustable) Cooling: 100% sealed oil bath cooling Beam direction: Diagonal from bottom (80° beam) X-ray leakage dose: Less than 1 μGy/h per scan Inspection Performance Noise: <58dB Max. Load Weight: 250 kg (551 lbs) Conveyor speed: Approx. 0.22 m/s Steel penetration: 22 mm (typical), 20 mm (standard) Conveyor height: 345mm (including the support) Wire Resolution: 40AWG (0.0787mm), 38AWG (typical) Space Resolution: Horizontal 1.0mm, Vertical 1.0mm Film Safety: Guaranteed for high-speed film up to ISO 1600 (33 DIN) Detectors Array detector: L-type photo-diode dual energy detector Image Performance System Operating system: Windows 7 English version Back/forward: 30 images to process Image storage: More than 100,000 images Color: 4 colors imaging/4096 grey Smart zoom: 64X adjustable zoom preview window Std Functions: High & Low & Super penetration, Organic & inorganic, Zoom in & out, Image management/Time & date, Self diagnostic/System log/Counts, etc. Language: Support language custom, basic is EN. Display: 19 inch color LCD monitor 2PCS, pixel 1280 x 1024 video card Other Functions TIP functions: Audio & indicator alarm for liquid & high density substances Images output: Can be put out with USB interfaces. Optional Functions Smart roller: Two sides scanning energy saving (Optional) Scan directions: Two sides/direction scanning (Optional) Backup UPS: Support 30 minutes working (Optional) 304 SS rollers: 0.5 meter for the entrance & exit (Optional) Image Performance System: Operating system: Win 7 English version. Back/forward: 30 images to process. Image storage: More than 100,000 images. Color: 4 colors imaging/4096 grey. Smart zoom: 64X adjustable zoom preview window. Std Functions: High & Low & Super penetration/ Organic& in-organic/zoom in & out/ Image management/Time & date/Self-diagnostic/System log/Counts, etc. Language: Support language custom, basic is EN. Display: 19-inch color LCD monitor 2PCS, pixel 1280 x 1024 video card. Detectors: ▸ Array detector: L-type photo-diode dual energy detector. X-ray Generator: X-ray tube head: Self-contained. Tube voltage: 160KV. Tube current: 0.2~1.0 mA (adjustable). Cooling: 100% with sealed oil bath cooling. Beam direction: Diagonal from bottom (80° beam). X-ray leakage dose: Less than 1 µGy/h for per scan. Inspection Performance: Noise: <58dB. Max. Load Weight: 250 kg (551 lbs). Conveyor speed: Approx. 0.22m/s. Steel penetration: 22 mm, 20mm typical. Conveyor height: 345mm (including the support tray). Wire Resolution: 40AWG(0.0787mm), 38AWG typical. Space Resolution: Horizontal 1.0mm; vertical $ 1.0 mm. Film Safety: Guaranteed for high-speed film up to ISO 1600 (33 DIN). Other Functions: TIP functions: Audio & indicator alarm for liquid & high-density substances. Images output: Can be put out with USB interfaces. Optional Functions Smart roller: Two sides scanning energy saving(Optional). Scan directions: Two sides/direction scanning (Optional). Backup UPS: Support 30 minutes working (Optional). 304 SS rollers: 1 meter for the entrance & exit(Optional). Applications Hold baggage inspection Cargo and freight inspection Customs and border inspection Passenger, visitor, and delivery checkpoints Features Easy operation Low X-ray leakage dose Famous brand components Auxiliary inspection for explosives, drugs
