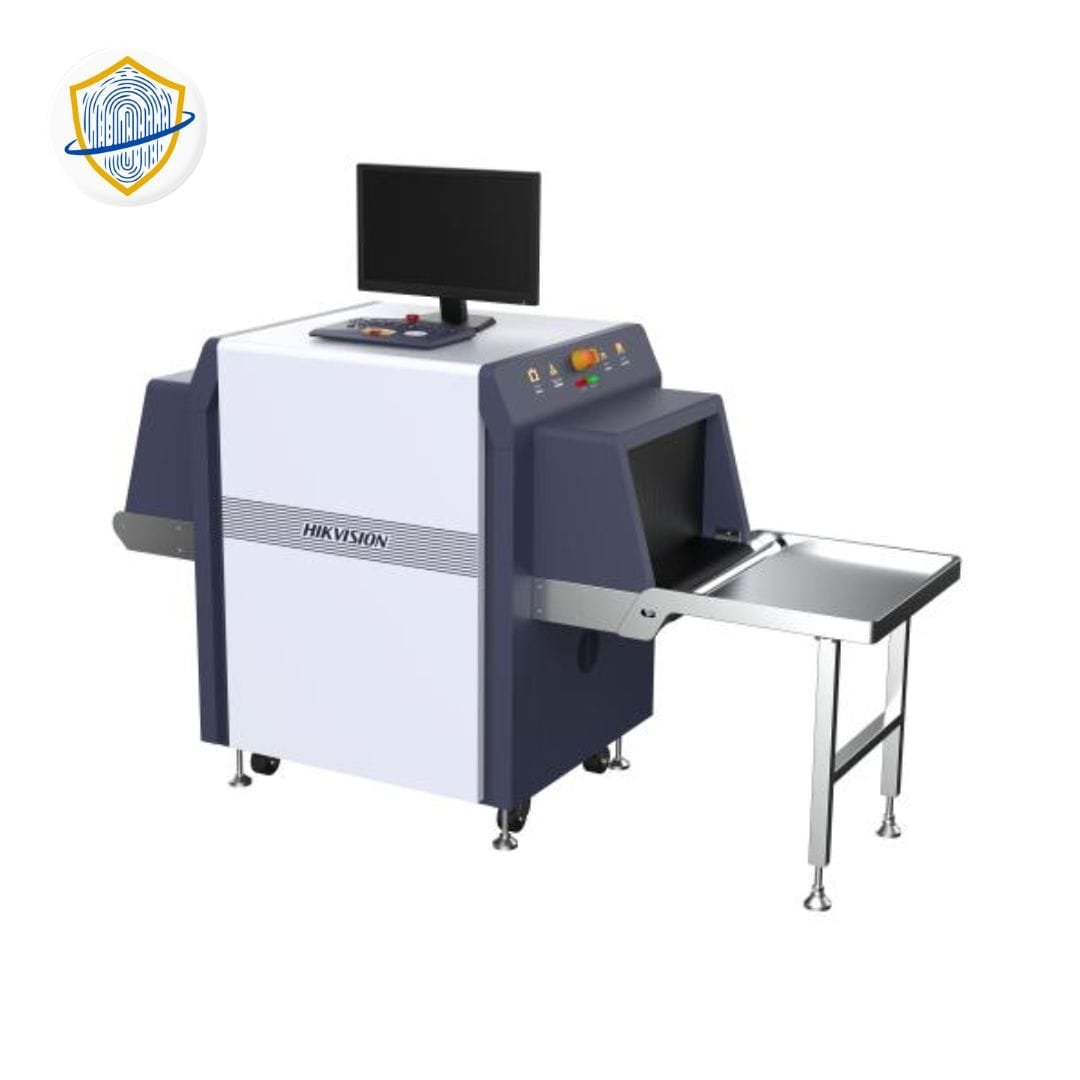

ISD-SC5030S-2CVL | Intelligent X-Ray Security Inspection System

Description Dimension Parameters: Tunnel Size: 505mm Width x 308mm Height Specification Parameters: Max. Load: 100 kg (220.46 lb) Conveyor Speed: 0.22 m/s Performance Parameters: Penetration: Standard 30mm, customizable up to 34 mm Wire Resolution: 40AWG Spatial Resolution: Vertical: 1.0 mm (0.04″) Horizontal: 1.0 mm (0.04″) General Standard: Power Consumption: 0.6 kW Weight: 310 kg (639.34 lb) Radiation Dose: X-Ray Dose Per Inspection: < 5μGy X-Ray Leakage: < 1 μGy/h Other Parameters: X-Ray Generator: Anode Voltage: Standard 140 kV, 100% Oil Cooling Power Supply: 220 VAC/110 VAC (-10% to 15%), 50 Hz /60 Hz(±3 Hz) Working Temperature: 0°C to 40°C (41°F to 104°F) Working Humidity: 0% to 90% General Dimension: Dimension: 1586mm × 1160mm × 760mm (Length x Height x Width) Other Details Raytina introduces a new generation image enhancement engine, utilizing advanced intelligent imaging algorithms for clearer, more detailed images. Its material identification technology distinguishes atomic properties, enabling color differentiation. With intelligent recognition, it integrates deep learning algorithms and X-ray imaging software for enhanced detection. It adheres to strict radiation safety standards and offers adjustable conveyor speeds for efficiency. Dual lead curtains minimize radiation exposure. It supports Hik-central integration and data upload. Event tracing combines X-ray images with video for comprehensive analysis. Features include password and fingerprint login, energy-saving sensors, and operational training systems. Raytina’s sleek design and rigorous quality control ensure reliability and longevity.
