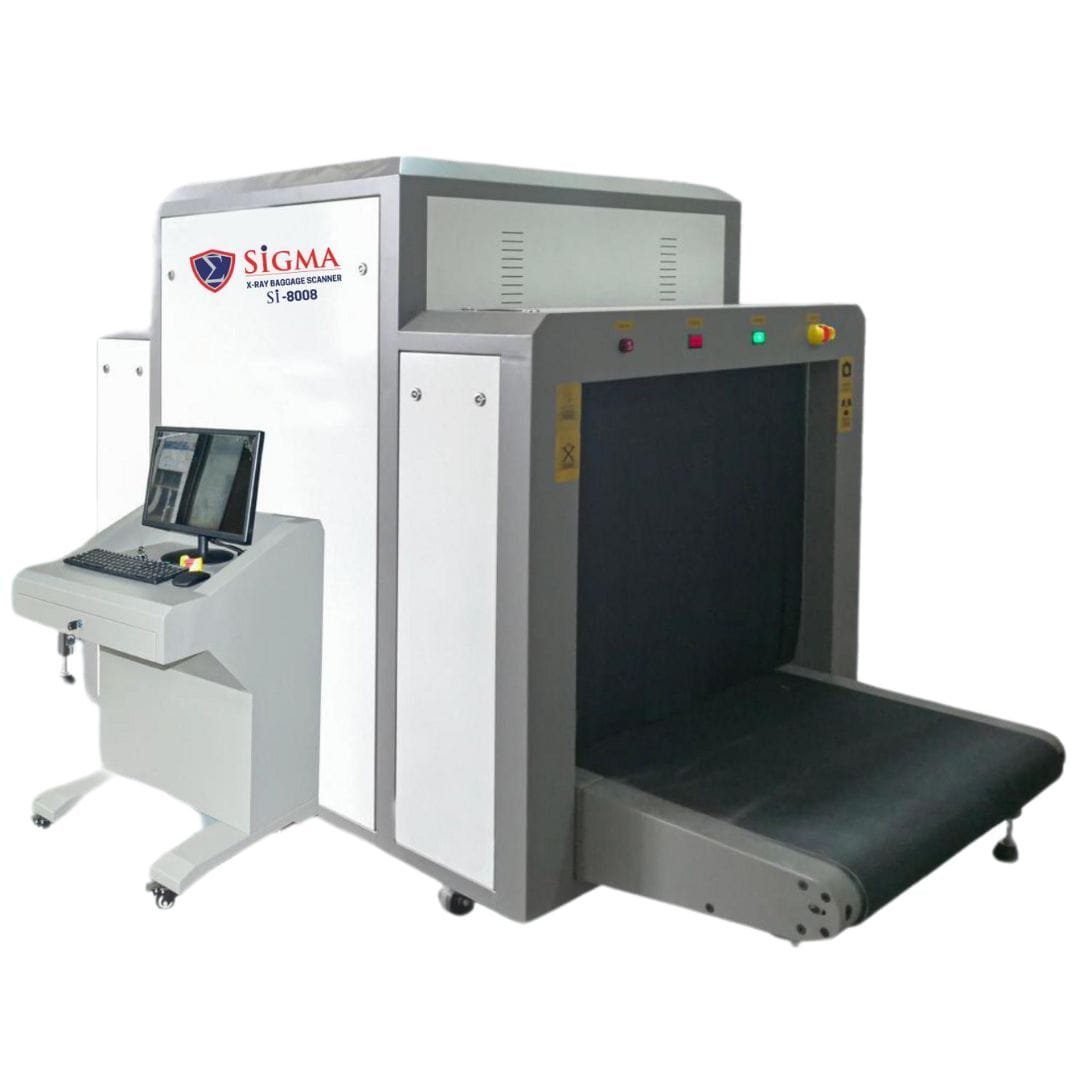

Description Physical Details of Si-8008: The Baggage Scanner si-8008 has the following physical details. Tunnel size: 800(W) x 650(H)mm. Consumption: < 0.5 kw/h. Net/Gross weight: 650 kg/700 kg. Working temp: (-20)-( 60) Storage temp: (-30)-( 70) Humidity: 5% to 95%, non-condensing. Power supply: 110-240VAC, 50/60±3Hz. Product dimension: 2640(L)x1090(W)x1460(H)mm. Package dimension: 2000(L)x1400(W)x1700(H)mm. Image Performance System: Operating system: Win 7 English version. Back/forward: 30 images to process. Image storage: More than 100,000 images. Color: 4 colors imaging/4096 grey. Smart zoom: 64X adjustable zoom preview window. Std Functions: High & Low & Super penetration/ ▸ Organic& in-organic/zoom in & out Image management/Time & date/ ▸ Self-diagnostic/System log/Counts, etc. Language: Support language custom, basic is EN. Display: 19-inch color LCD monitor IPCS, Pixel 1280 x 1024 video card. Detectors: ▸ Array detector: L-type photo-diode dual energy detector. X-ray Generator: X-ray tube head: Self-contained. Tube voltage: 140KV. Tube current: 0.2-1.0 mA (adjustable). Cooling: 100% with sealed oil bath cooling. Beam direction: Diagonal from the top (80° beam). X-ray leakage dose: Less than 1 µGy/h for per scan. Inspection Performance: Noise: <57dB. Max. Load Weight: 200 kg (441 lbs). Conveyor speed: Approx. 0.22m/s. Steel penetration: 24-28mm, 22 mm typical. Conveyor height: 345mm (including the support tray). Wire Resolution: 40AWG(0.0787mm), 38AWG typical. Space Resolution: Horizontal 1.0mm; vertical 1.0 mm. Film Safety: Guaranteed for high-speed film up to ISO 1600 (33 DIN). Other Functions: TIP functions: Audio & indicator alarm for liquid & high-density substances. Images output: Can be put out with USB interfaces. Applications Hold baggage inspection Cargo and freight inspection Customs and border inspection Passenger, visitor, and delivery checkpoints Features Easy operation Low X-ray leakage dose Famous brand components Auxiliary inspection for explosives, drugs
