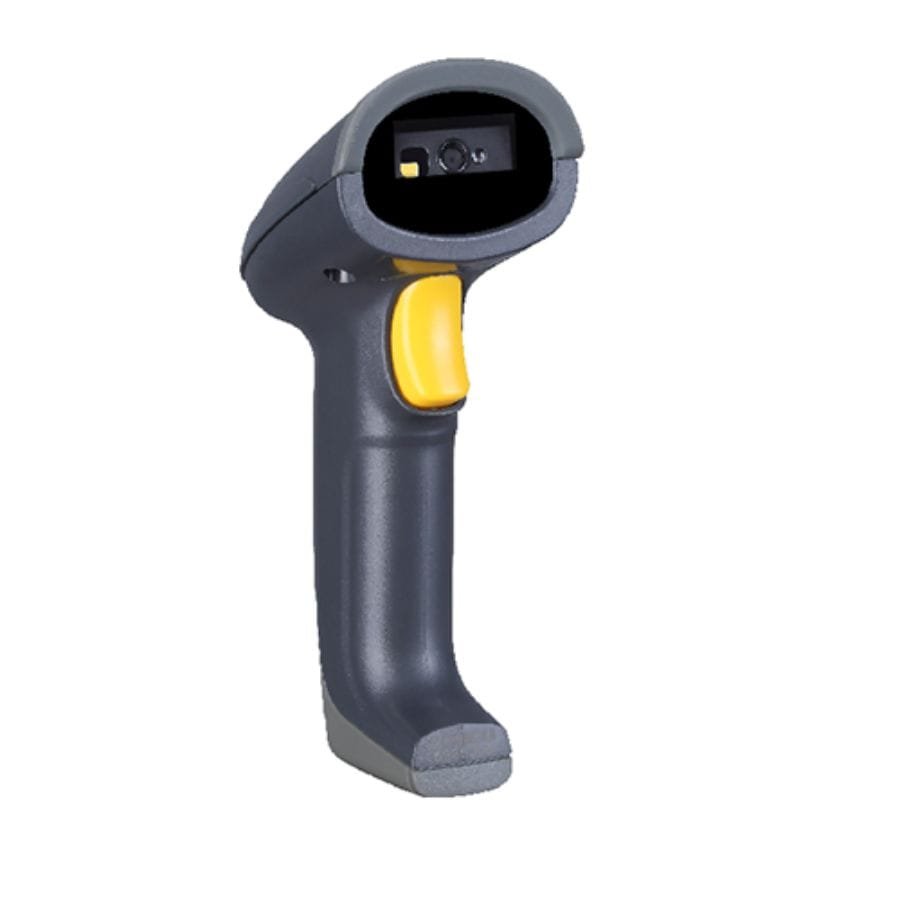

ZKTeco ZKB201 2D Barcode scanner

Description Technical Specifications Model Name: ZKB201 General Dimensions: 175mm × 72mm × 100mm Weight: 160g (without cable) Cable Length: 1.8m Interface Type: RJ-45 Standard USB (Full Speed, USB 2.0) Material: ABS PC Color: Black User Indicators: LED, buzzer Scanning Performance Light Source: Lighting – White LED; Focusing – Green LED; Wavelength – 525nm Image Sensor: 640×480 CMOS Processor: ARM 32-bit Startup Time: 4s Analytical Ability: 1D: ≥5mil; 2D: ≥8.7mil, PCS90% Depth of Focus: 5mil: 50130mm; 13mil: 50270mm Scanning Mode: Manual scanning, automatic scanning Reading Angle: Roll: ±360°; Pitch: ±60° (or greater); Yaw: ±70° (or greater) Field of View: Horizontal 40°, Vertical 30° Motion Tolerance: 2.3m/s Power: 160mA, 5V DC Light Levels: 70000Lux Decode Capabilities: 1D: Codabar, Code39, Code32, Interleaved 2 of 5 (ITF25), Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded 2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec Environmental Characteristics Operating Temperature: -20°C to 55°C Storage Temperature: -20°C to 60°C Relative Humidity: 5% to 95% (non-condensing) Protection: IP54 Drop Test: 1.8m, 100 times High and Low-Temperature Test: Works properly for 30 minutes under simulation of temperatures of -20°C and 60°C Transport Vibration Test: 10 hours @ 125 RPM
