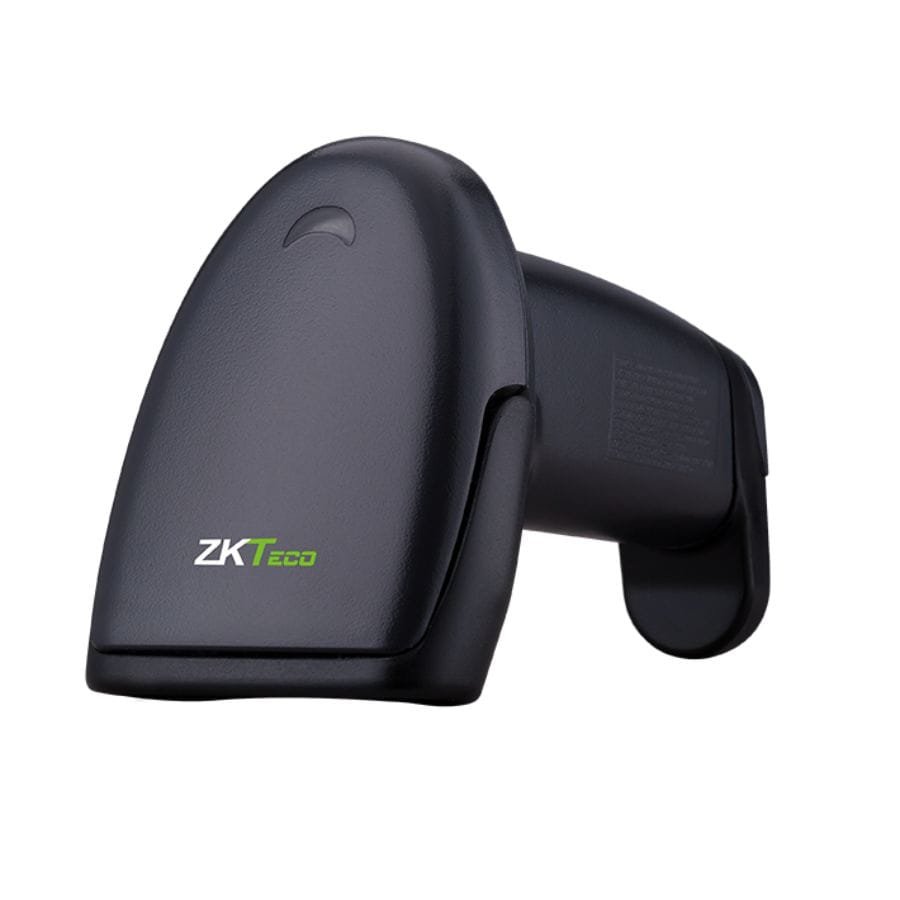

ZKTeco ZKB101 1D barcode scanner

Description Technical Specifications for ZKB101: Kind: 32-bit red laser scanner. Types of Bar Code: EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, CODE-128, CODE-93, RSS-Standard, CODE-39, Interleaved 2/5, Standard 2/5, Matrix 2/5, Industrial 2/5, China-Post, M: YES, MSI-PLESSEY, CODE-BAR, CODE-11, etc. Reading Depth: 0-550mm (with 1.0mm bar code density in tests) Reading Angle: Vertical: 70°, Horizontal: 70° Precision: >= 3mil Decoding Speed: 300 times/second Decoding Error Rate: 1/8 million Electrostatic Discharge Rate: Download with Contact: 9KV, Air Download: 15KV Anti-Fall Protection: 1.8m fall-proof Dimensions: 139.5 x 71.1 x 89.9mm (L x W x H) Certifications: CE, FCC, ROHS, IP65, IEC60825 Energy Voltage: 3.5-5.5V DC Operating Current: 50mA Current at Rest: 25mA Peak Current: 100mA Ultra-low Energy Consumption: <1mA (rest) (Optional) Interface USB-HID: Compatible with USB 1.1 interface or higher. UART: Transmission speed range 1200-115200 bps Work Environment Operating Temperature: -10°C to 50°C Storage Temperature: -20°C to 60°C Operational Humidity: 5% to 95% Relative (condensation) Technical Specifications for ZKB102: Kind: 32-bit red light CCD scanner. Types of Bar Code: EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, CODE-128, CODE-93, RSS-Standard, CODE-39, Interleaved 2/5, Standard 2/5, Matrix 2/5, Industrial 2/5, China-Post, M: YES, MSI-PLESSEY, CODE-BAR, CODE-11, etc. Reading Depth: Maximum 500mm (with 0.5mm bar code density in tests) Reading Angle: Vertical: 60°, Horizontal: 60° Precision: >= 2mil, easy identification of 3mil codes Decoding Speed: 400 times/second (150% higher than common CCD readers) Decoding Error Rate: 1/3 million Electrostatic Discharge Rate: Download with Contact: 9KV, Air Download: 15KV Anti-Fall Protection: 1.8m fall-proof Dimensions: 175mm x 72mm x 100mm Energy Voltage: 4.5-5.5V DC Operating Current: 80mA Current at Rest: 55mA Peak Current: 120mA Ultra-low Energy Consumption: <1mA (in suspended mode) Interface USB-HID: Compatible with USB 2.0 interface or higher. UART: Transmission speed range 2400-115200 bps Work Environment Operating Temperature: 0°C to 50°C Storage Temperature: -20°C to 70°C Operational Humidity: 20% to 95% Relative (non-condensing)
