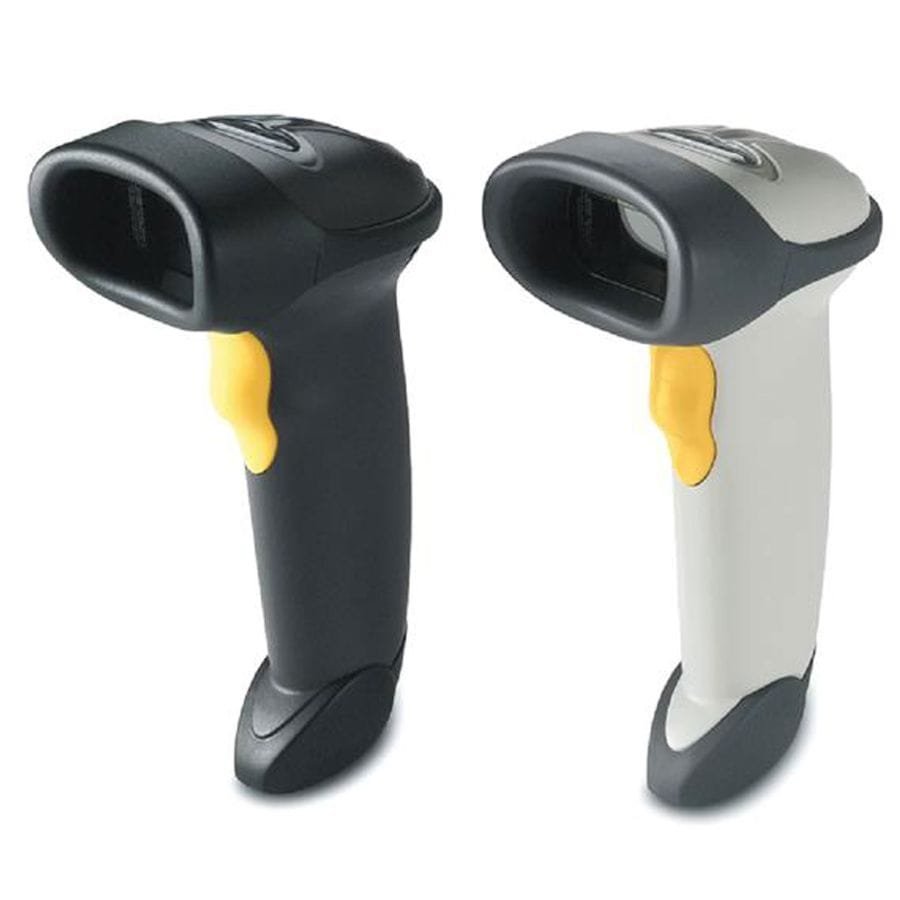

Description LS2208 Handheld Laser Scanner Overview Feature Description Best Selling Scanner Over eight million units sold Scan Range Extra-long read range for easy scanning Barcode Compatibility Supports everyday 1D barcodes, including high-density Universal Compatibility Multiple interfaces, universal cable, and support for keyboards in 97 languages Ergonomic Design Lightweight and ergonomic design for all-day comfort Durability Patented single board construction, liquid polymer scan element, scratch-resistant tempered glass exit window, and drop and tumble resistance High-Density Barcode Support Capable of capturing high-density barcodes on small items International Use Supports 97 international keyboards for global operation Working Range Captures 13 mil UPC barcodes on items over 25 inches away Decode Feedback Multiple feedback options for successful barcode capture Hands-Free Operation Optional IntellistandTM for presentation scanning and seamless mode switching Plug-and-Play Simplicity Universal cable for easy setup and minimal training time Advanced Data Formatting (ADF) Format data before sending it to the host computer Specifications Physical Characteristics Dimensions 6.0 in. H x 2.5 in. W x 3.3 in. D (15.2 cm H x 6.4 cm W x 8.5 cm D) Weight 5.3 oz. (150.0 g) Input Voltage Range 4.5 to 5.5 VDC (host powered or external power supply) Operating Current at Nominal Voltage (5.0V) 175 mA (typical) Standby Current (idle) at Nominal Voltage (5.0V) 90 mA (typical) Color Cash Register White, Twilight Black Supported Host Interfaces USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 Keyboard Support Supports over 90 international keyboards User Indicators Direct decode indicator, good decode LEDs, adjustable beeper tone/volume Performance Characteristics Performance Characteristics Light Source 650 nm Laser Diode Class 2 Scan Pattern Single line Scan Speed 100 scans per second Scan Angle 35° Minimum Print Contrast 20% minimum reflective difference Skew Tolerance ± 10° Pitch Tolerance ± 65° Roll Tolerance ± 60° User Environment User Environment Operating Temperature 32° to 122°F (0° to 50°C) Storage Temperature -40° to 158°F (-40° to 70°C) Humidity 5% – 95% RH, non-condensing Drop Specification Designed to withstand multiple drops at 5.0 ft. (1.5 m) to concrete Tumble Specification Designed to withstand 500 tumbles in 1.64 ft. (0.5 m) tumbler Environmental Sealing IP30 Electrostatic Discharge (ESD) ESD per EN61000-4-2, /-15 KV Air, /-8 KV Direct, /-8 KV Indirect Ambient Light Immunity 0 to 8,000 Foot Candles / 0 to 86,080 Lux; tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions; Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED: 450 Ft. Candles (4,844 Lux) Sunlight: 8000 Ft. Candles (86,111 Lux) Symbol Decode Capability Scanning Technology: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). Refer to Product Reference Guide for a complete list of symbologies. Accessories Gooseneck Intellistand Regulatory Electrical Safety: EN 60950-1: 2006 A11: 2009 A1: 2010 A12: 2011 AC 2011; IEC 60950-1: 2005 A1: 2009; UL 60950-1, second edition; CAN/CSA-C22.2 No. 60950-1-07 EMI/RFI: FCC 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 4, Class B; Compliant with EMC Directive 2004/108/EC Laser Safety: CDRH Class II; IEC Class 2 Environmental: Compliant with RoHS Directive 2011/65/EU; EN 50581: 2012 Symbology/Resolution Near/Far Code 39: 3 mil 1.6 – 4.8 in./4.1 – 12.2 cm Code 39: 4 mil 1.3 – 8.7 in./3.3 – 22.1 cm Code 39: 5 mil
