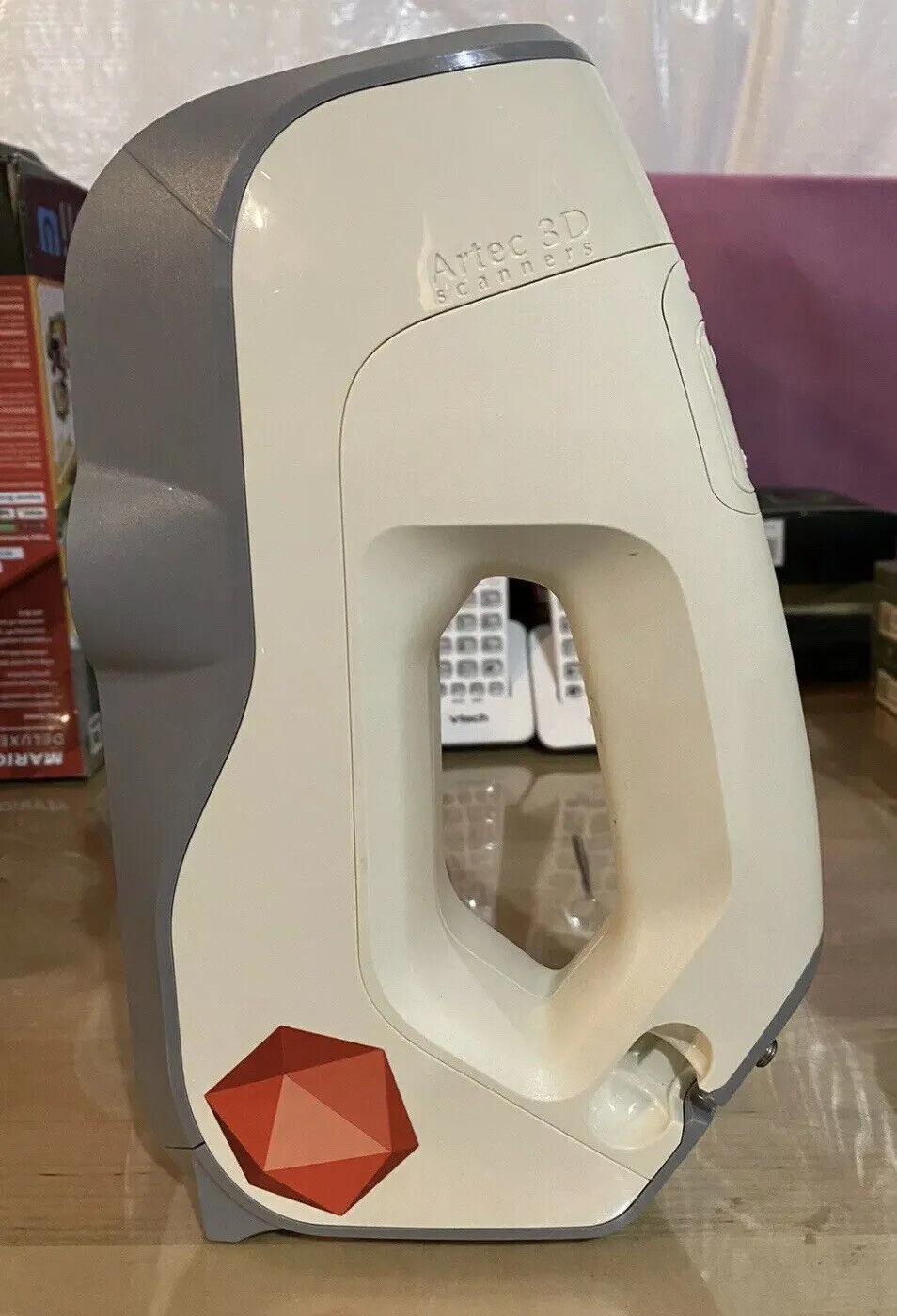

Artec Scanner EVA Lite

Description Artec Scanner EVA Lite The flexible Artec Eva 3D scanner is handheld and allows you to capture in real time. To do this, you have to move the scanner around an object so that it is recorded from different directions. The Artec Eva captures up to 16 scans per second. Thanks to real-time registration, you can see in the Artec Studio scanning software which areas you have already scanned. The way it works is similar to that of a video camera. However, you do not record 2D images, but the three-dimensional surface of the object. To generate a complete 3D model, align the scans and merge all scans. Various tools such as hole filling, adaptive data reduction, etc. are available for further processing. Artec Scanner EVA Lite specifications: * Ability to capture texture No * 3D resolution, up to 0.5 mm * 3D point accuracy, up to 0.1 mm * 3D accuracy over distance, up to 0.15% bei 100 cm * Texture resolution – * Colors 24 bpp * Light source flash bulb (no laser) * Working distance 0.4 – 1 m * Linear field of view, HxW @ closest range 214 x 148 mm * Linear field of view, HxW @ furthest range 536 x 371 mm * Angular field of view, H?W 30 x 21° * Video frame rate, up to 16 fps * Exposure time 0.0002 s * Data acquisition speed, up to 2 000 000 points/s * Multi core processing Yes * Dimensions, HxDxW 261.5 x 158.2 x 63.7 mm * Weight 0.85 kg / 1.9 lb * Power consumption 12V, 48W * Interface 1? USB2.0 * Output formats OBJ, PTX, STL, WRML, ASCII, AOP, CSV, PLY * Processing capacity 40’000’000 triangles/1GB RAM * Supported OS Windows Vista x64. Windows 7 x64 * Minimum computer requirements I5 or I7 recommended, 8GB RAM, NVIDIA GeForce 400 series * Calibration no special equipment required Do you want to scan medium-sized objects quickly and without the time-consuming placement of reference marks? Then the 3D scanner Artec Eva is the solution for you! With the optical scanner from Artec, you can capture small to medium-sized objects in the shortest possible time and in high resolution. Since the Artec scanner Eva scans objects in real time and combines the individual measurements into a 3D model, there is no need to set up or attach reference marks to the object. Functionality: The flexible Artec Eva 3D scanner is handheld and allows you to capture in real time. To do this, you have to move the scanner around an object so that it is recorded from different directions. The Artec Eva captures up to 16 scans per second. Thanks to real-time registration, you can see in the Artec Studio scanning software which areas you have already scanned. The way it works is similar to that of a video camera. However, you do not record 2D images, but the three-dimensional surface of the object. To generate a complete 3D model, align the scans and merge all scans. Various tools such as hole filling, adaptive data reduction, etc. are available for further processing. Feature comparison table Artec Eva or Eva Lite: 3D scanning Artec EVA Artec Eva Lite Hybrid focus on geometry and texture X alignment to geometry X X texture capture X geometry capture X X Continuous scanning X Automatically resume selected scans X Option to use with targets to scan X post processing autopilot X X Automatic alignment of scans Based on textures and geometries Based on geometries only Total coverage By textures and geometries By geometries only Creation of full-color 3D models X   Information about Artec Studio Areas of application: Medicine/medical technology: partial or full body scans, orthopedics and prostheses, seat molds/foams, plastic surgery, dietetics/training/sport Industry and production: prototyping, quality control, reverse engineering Multimedia, 3D graphics and design: films, games, ergonomics, computer graphics (person scanning, facial expression scans) Preservation of monuments: virtual museums, restoration, archives, catalogues criminology Biomechanical Research insurance System requirements: Operating system: Windows 7, 8 or 10 – x64 Processor: I5, I7 recommended RAM: 12GB USB 2.0 connection Video cards: NVIDIA/ATI; recommended: NVIDIA GeForce 400 series or better, at least 1 GB memory Free disk space: 300 MB for installation Attention: Unsupported operating systems: Windows XP, Windows Vista, 32-bit OS, AMD FirePro M6100 Fire GL V Not recommended: Xeon or AMD processors, NVIDIA SLI or AMD CrossFire configuration NVIDIA Quadro and Intel cards are officially supported starting with Artec 11 Compatible software and export formats: Geomagic RapidForm RHINO Autodesk Maya 3D Max AutoCAD blenders XSI mud box Pixologic ZBrush and others Export formats: AOP, STL, OBJ, PLY, VRML, ASCII, E57, PTX and others. Learn more about the Artec Eva 3D scanner If you come from the research or university field, ask us for a discount. * We offer Artec products in cooperation with an authorized ARTEC partner. ARTEC products are sold exclusively in Germany.
