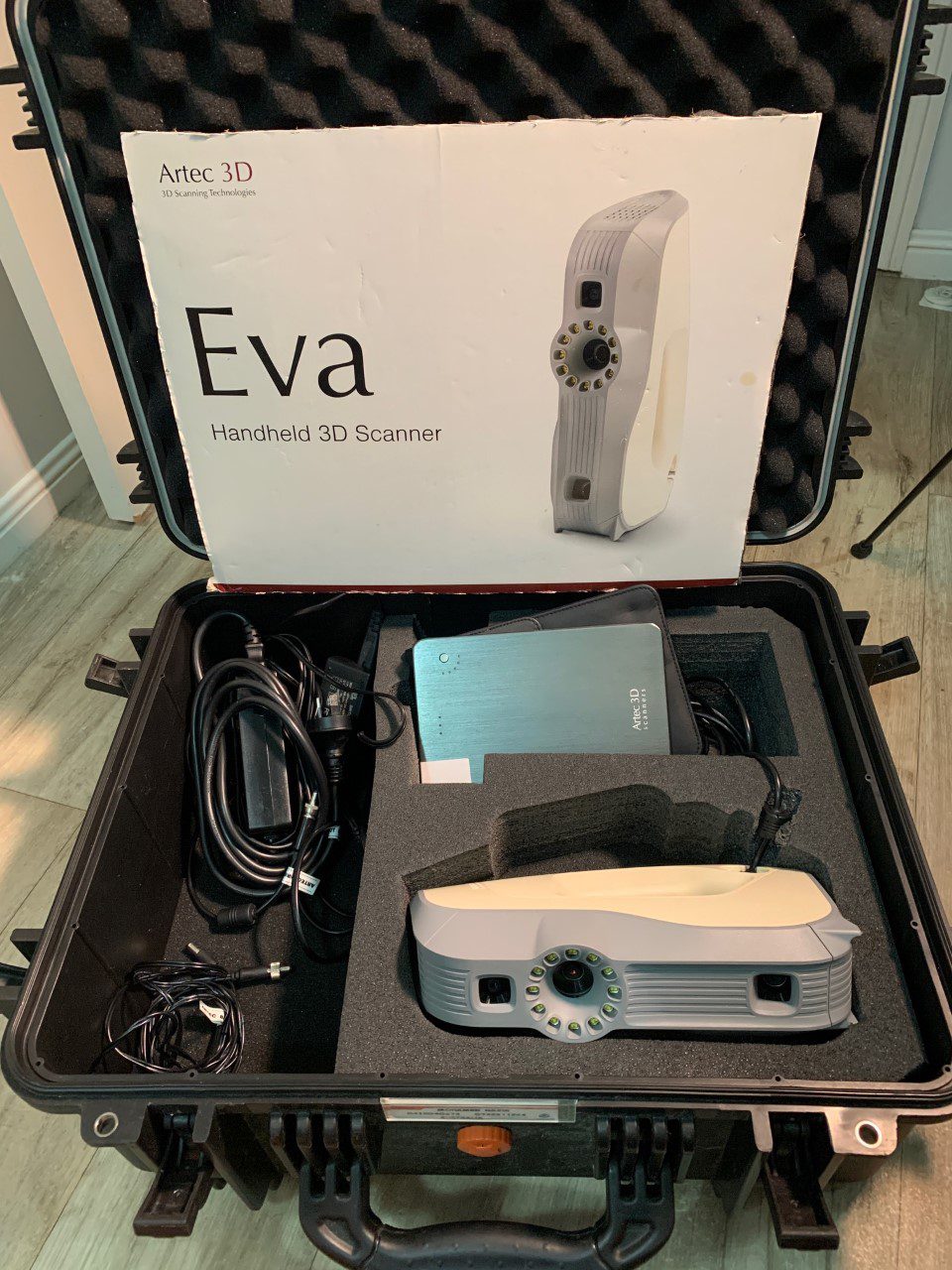

Description Artec EVA 3D handheld scanner This structured light 3D scanner is the ideal choice for making a quick, textured and accurate 3D model of medium sized objects such as a human bust, an alloy wheel, or a motorcycle exhaust system. It scans quickly, capturing precise measurements in high resolution. Light, fast and versatile, Eva is our most popular scanner and a market leader in handheld 3D scanners. Based on safe-to-use structured light scanning technology, it is an excellent all round solution for capturing objects of almost any kind, including objects with black and shiny surfaces. Features: *Ability to capture texture *3D resolution up to 0,5 mm *3D point accuracy up to 0,1 mm *3D accuracy over distance up to 0,03% over 100 cm *Texture resolution: 1,3 Megapixel *Colors: 24 bits per pixel (over 16 Million colors) *Light source: Flash Bulb (no laser) *Working distance: 0.4 m – 1 m *Linear field of view – Height x Width at closest range: 214 mm x 148 mm *Linear field of view – Height x Width at longest range: 536 mm 371 mm *Angular field of view – Height x Width: 30 x 21º *Video frame rate up to 16 fps *Exposure time: 0.0002 s *Data acquisition speed up to 2 000 000 points per second *Multi core processing *Physical Dimensions: 261,5 mm x 158,2 mm x 63,7 mm *Weight: 850 grams *Power consumption 12V, 48W *Interface 1 x USB 2.0 *Output formats: OBJ, PTX, STL, WRML, ASCII, AOP, CSV, PLY, E57 *Processing Capacity: 40,000,000 triangles Artec EVA 3D handheld scanner Hardware Requirements: *Processor: Intel Quad Core (i5 or i7 recommended) *Memory: 8GB (16GB Recommended) *1 x USB 2.0 port for a regular scanner. To connect several scanners, a computer with several independent USB 2.0 hosts, or PCI/PCIU-Express 2.0 cards is recommended. *Video Card: nVidia GeForce 9 (9xxxx) series or better with at least 512 MB of memory. *Setero viewing: nVidia Quadro graphics family is required. *OS: Windows Vista x64, Windows 7 x64, Windows 8 x64 (Windows XP is not officially supported.) *300 MB Disc Space for installation. Artec EVA 3D handheld scanner What’s in the box: *Artec EVA Handheld 3D Scanner *USB Cable *Power Cable and Power Adapter
