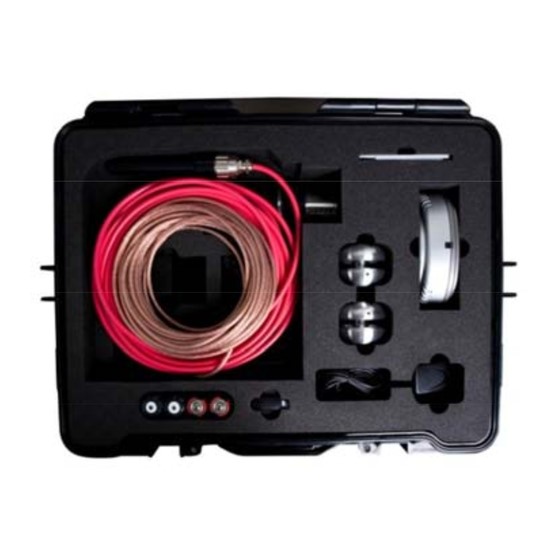

Description HV DIAGNOSTICS TD30 30KV TAN DELTA BRIDGE The HV Diagnostics TD30 30kV Tan Delta Bridge is an easy to use, single piece, Digital Signal Processor based, field portable, fully automatic VLF (Very Low Frequency) high voltage measurement instrument developed for the high potential measuring of the insulation dielectrics of various types of electrical apparatus. features: 0-30kV tan delta bridge Compact and battery operated Solid state, air insulated design Configuration and data extraction through Bluetooth connection • Supplied with complete analysis software Real time display of actual output waveform Suitable for use with HV Diagnostics HVA30 VLF system This item is part of our rental fleet and will show signs of normal wear due to use. It has been regularly tested, maintained, and cleaned upon each rental return. Stock images are used on the website for listing purposes. Technical Specifications Ordering Information: • 700 003 Power Supply: • 2 C Type Batteries Rated Operating Voltage: • RMS 1-23kV • Peak 33kV Voltage Measurement: • Resolution 0.1kV • Accuracy 1% (of reading) Current: Measurement • Resolution 1µA • Accuracy 1% (of reading) Frequency Measurement • Range 0.01 to 0.1Hz • Resolution 0.01Hz Tan Delta / Dissipation Factor Measurement: • Resolution 1 x 10 -5 • Accuracy >15nF ±1 x 10 -4 • Accuracy <15nF ±3 x 10 -4 • Minimum Load: 5nF Weight: • 7 lbs / 3 kgs Dimensions: • (Length x Diameter) 9.5 x 3.5 inches / 240 x 85mm Computer Interface: • Bluetooth Accessories Included: • Integrated HV and Grounding Cable • Bluetooth USB Dongle • TD Control Center Software • Operating Manual • Corona Protection Standards: • Shock • IEC68-2-27 • Vibration • IEC68-2-6 • EMC • IEC6100-4-2, IEC6100-4-4, EN55011 • Safety • EN60950, EN50191, EN61010-1 Environmental: • Storage -13°F to 158°F / -25°C to 70°C • Operating 23°F to 113°F / -5°C to 45°C • Humidity 80% RH non-condensing
