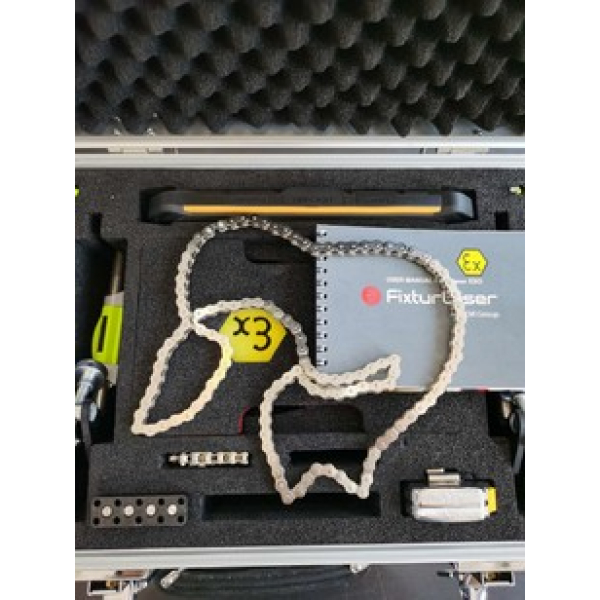

Used Fixturlaser EXO Laser Shaft Alignment FIXTURLASER EXO – Package with Case Tablet EX 2 pcs of digital smart sensors EX 2 pcs of V-brackets, complete with chains EX Rod kit 2 pcs of chains, 8 mm (length=970 mm) Power cable, EU and US USB cable with snap ferrite, A-mini, 2 m Power supply 5 USB ports 3 pcs of USB cables A-mini B, 0,5 m Tape measure 5 m 2 pcs of angled universal tools Fixturlaser NXA manual – English version Technical specification Fixturlaser EXO – Package with Case* Weight including all standard parts 6,6 kg (14,6 lbs) Storage temp -20 to 70°C (-4 to 158°F) Long term storage temp Room temp. 18 to 28°C (64 to 82°F) Case Material Anodixed aluminum/plywood Weight (empty) 4,0 kg (8,8 lbs) Dimension 370 mm x 270 mm x 205 mm (14,6 in x 10,6 in x 8,1 in) Digital Laser Sensors Housing Material Anodized Aluminum frame and high impact ABS plastic overmolded with TPE rubber Operating Temp 0 to 50°C (32 to 122°F) Storage Temp -20 to 70°C ( -4 to 158°F) Long term storage temp Room temp. 18 to 28°C (64 to 82°F) Battery Charging Temp 5 to 40°C (41 to 104°F) Relative humidity 10 – 90% Weight M4 Ex: 220 g (7,8 oz) S4 Ex: 190 g (6,7 oz) Dimensions 92 mm x 77 mm x 33 mm (3,6 in x 3,0 in x 1,3 in) Environmental protection IP 65 (Dust-tight and protected against water jets) Laser 650 nm class II diode laser Laser line fan angle 6° Laser line width (1/e2) 1.6 mm Laser line divergence (full angle) 0.25 mrad Laser power < 1 mW Measurement distance Up to 5m Detector 2nd gen. digital sensor Detector length 30mm ( 1,2 in ) Detector angular subtense 30mrad/m (3mm/100mm per meter) Detector resolution 1 µm Measurement accuracy 0,3% ± 7 µm Signal processing: Digital signal processing with sidespot rejection, edge detection, ambient light elimination, and anti-vibration mode Ambient light protection Optical filtering and digital ambient light signal elimination Inclinometer: Dual High-Performance MEMS inclinometers Inclinometer resolution 0,01° Inclinometer accuracy ±0,2° Total measurement axis’s (M4 S4Ex units) 14 Wireless communication: Class I Bluetooth transmitter Communication range 10 m (33 ft) Peripherals – User accessible 1 USB Mini port (IP 67); Charging: 5V, 0,5A Power supply High-performance Li-Ion battery or external power. Operating time: 12 hours continuous use (measuring) Battery Charging time (system off, room temperature) 5 hours LED indicators Unit state, laser transmission and 5 battery status indicators with instant battery check Laser safety* Shaft brackets Fixture V-fixture with non-twisting chain, width 20 mm (0,79 in) Material Anodized aluminum Shaft diameter Ø 25-175 mm (1”-6.9”) Ø 25-450 mm (1”-18”) (with extension chains) Rods 4 pcs 100 mm (3,9 in) and 4 pcs 150 mm (5,9 in) Extendable to 250 mm (9,8 in) Show More Show Less
