ECOM J2KN Portable Emissions Analyzer – Like New

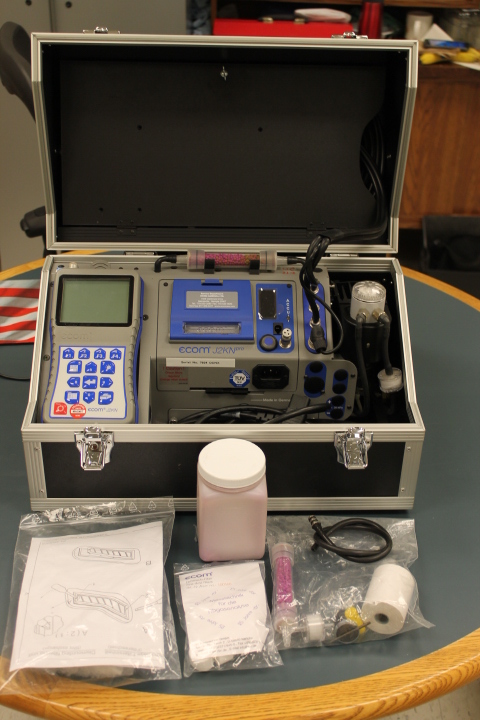

Description ECOM J2KN Portable Emissions Analyzer – Like New The ECOM J2KN is the “heavy-duty”, version of the J2K, with the analyzer and all of it’s outstanding features built into a rugged hard-sided, aluminum reinforced case. With wireless remote control, the J2KN’s handheld remote allows complete operation of the analyzer showing all values at a glance, zoom display capability, and plug-in memory up to 256 MB. The tactile keypad guides the operator through the various functions of the analyzer. The remote display feature makes the J2K an ideal emission analyzer where combustion controls are located away from the flue test port on large combustion systems. The J2K can be fitted with up to 5 gas sensors to measure O2, CO, NO, NO2, and Combustibles, along with gas and ambient temperatures, stack draft & pressure, plus calculations of CO2, efficiency, excess air, and oxygen correction to 20%. Features : In-line flowmeter with 3.5 lpm pump Measures O2 CO NOx Low NOx SO2 and combustibles Stack Temperature and Draft Measurement Thermoelectric Gas cooler & Automatic Ambient Flue Gas Sensor Temperature Measurement Technical Specifications : Measurement – Oxygen (O) : Range: 0 – 21% vol. Carbon Monoxide © : Range: 0 – 4000 ppm Carbon Monoxide (V) : Range: 1 – 40000 ppm Nitric Oxide (N) : Range: 0 – 4000 ppm Nitric Oxide (.N) : Range: 0 – 400 ppm Nitrogen Dioxide (X) : Range: 0 – 500 ppm Nitrogen Dioxide (.X) : Range: 0 – 50 ppm Sulfur Dioxide (S) : Range: 0 – 5000 ppm Combustibles (H) : Range: 0 – 6.00 % vol Gas Temperature : Range: 32 – 1800 F Ambient Temperature : Range: 0 – 250 F Draft / Pressure : Range: ± 40\” H2O Operating Temperature : Core temperature of the instrument is monitored continuously. Internal Temperature Compensation software assures accurate sensor response ov Display : Backlit adjustable contrast and zoom displays all parameters simultaneously. Sample Line : 15′ high-temp flex hose w/thermocouple wire Dimensions : US: 16 x 10 x 12 in. Metric: 40.6 x 25.4 x 30.48 cm Please Contact Us For More Information!
