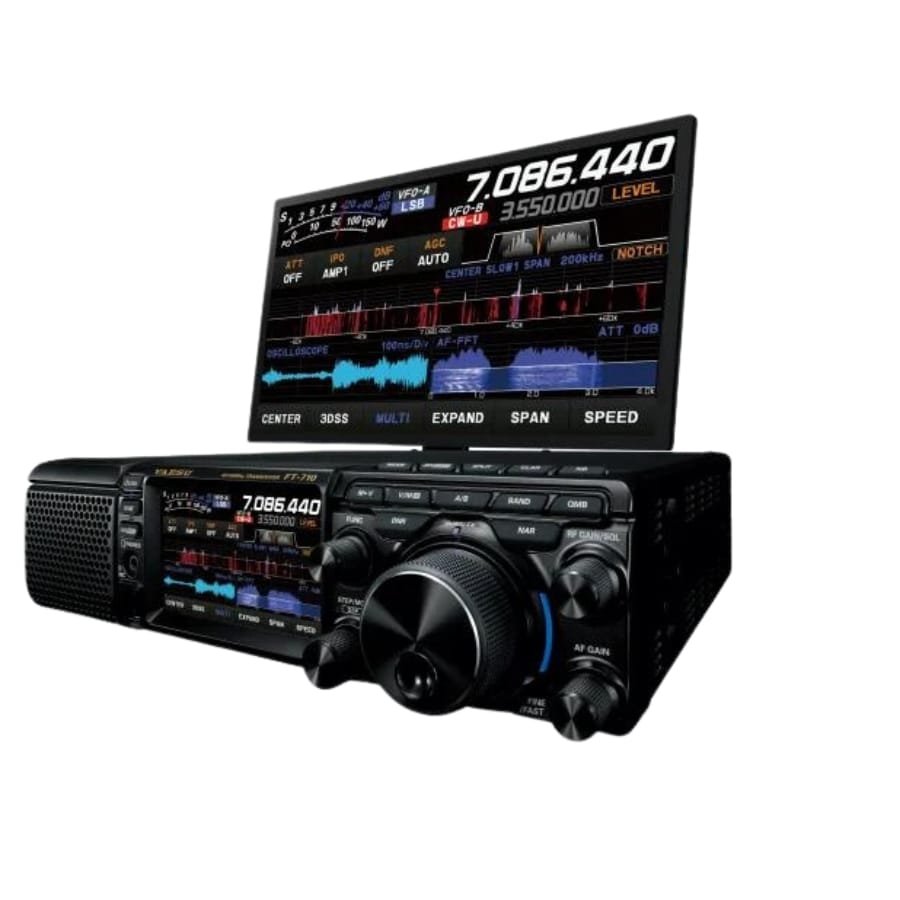

Description Radio Features: HF/50MHz band 100W Compact SDR Transceiver SDR circuit configuration emphasizes Receiving Performance which is enabled by the same high-resolution A/D converter and FPGA used in YAESU high-end SDR transceivers. Powerful RF Front-End and Low Noise Oscillator System enable Phenomenal Multi-Signal Receiving Characteristics: RMDR: 113dB BDR: 127dB 3rd IMDR: 102dB TX Phase Noise: -143dBc/Hz Multi-Signal Receiving Characteristic: 14MHz band/2kHz separation Band-Pass-Filters dedicated for the amateur bands to eliminate out-of-band unwanted signals Built-in High-speed Automatic antenna tuner with 100 channel memory Effective QRM rejection afforded by Dual-core 32-bit high-speed floating decimal point DSP AESS (Acoustic Enhanced Speaker System) with the supplied SP-40 speaker to create High-fidelity audio output High-Resolution 4.3-inch TFT Color Touch Panel Display 3DSS, real-time 3-Dimensional Spectrum Stream presentation VMI (VFO Mode Indicator) shows the current operating mode (VFO-A, VFO-B, Memory Mode, and Clarifier/Split operation) at a glance “PRESET” Mode functions most suitable for FT8 operation Equipped with the External Display terminal (DVI-D) Two (2) USB Ports (Type-A and Type-B) SD Memory Card Slot Support the FC-40 Auto Antenna Tuner Remote Operation with Network Remote Control System (Available in the near future) Supplied Accessories: External Speaker SP-40 Microphone SSM-75E DC Power Cable with Fuse Spare Fuse Operating Manual
