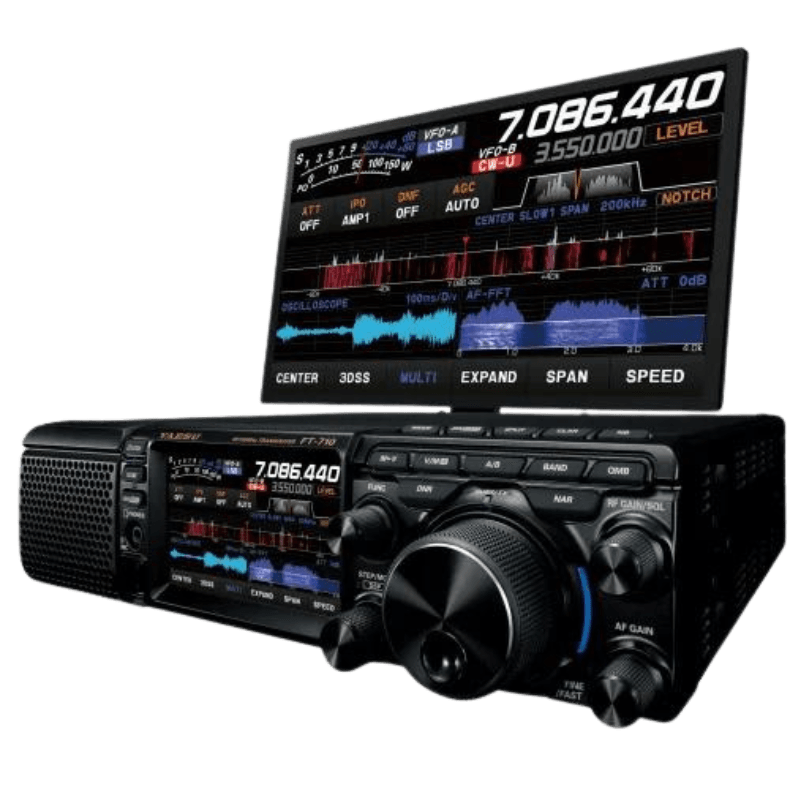

Description Features Details Band HF/50MHz Power 100W SDR Circuit Configuration Emphasizes Receiving Performance, uses high-resolution A/D converter and FPGA from YAESU high-end SDRs RF Front-End Powerful, enables Phenomenal Multi-Signal Receiving Characteristics Characteristics – RMDR: 113dB – BDR: 127dB – 3rd IMDR: 102dB – TX Phase Noise: -143dBc/Hz Band-Pass-Filters Dedicated for amateur bands to eliminate out-of-band unwanted signals Automatic Antenna Tuner Built-in with 100 channel memory QRM Rejection Enabled by Dual-core 32-bit high-speed floating decimal point DSP Speaker System AESS (Acoustic Enhanced Speaker System) with SP-40 speaker for High-fidelity audio output Display High Resolution 4.3-inch TFT Color Touch Panel 3DSS Real-time 3-Dimensional Spectrum Stream presentation VMI VFO Mode Indicator displaying the current operating mode PRESET Mode Designed for FT8 operation Ports External Display terminal (DVI-D), Two (2) USB Ports (Type-A and Type-B), SD Memory Card Slot Antenna Tuner Support Supports the FC-40 Auto Antenna Tuner Remote Operation Possible with Network Remote Control System (Available in the near future) Supplied Accessories External Speaker SP-40, Microphone SSM-75E, DC Power Cable w/Fuse, Spare Fuse, Operating Manual Frequency Ranges RX: 30kHz – 75MHz (Operating), TX: 1.8MHz – 50MHz (Amateur bands only) Modulation Types A1A(CW), A3E(AM), J3E(LSB,USB), F3E(FM) Frequency Stability ±0.5ppm (after 1 minute @ 32°F to 122°F / 0°C to 50°C) Supply Voltage DC 13.8V ±15% RF Power Output 5W – 100W (5W – 25W : AM Carrier) Dimensions (W x H x D) 9.4″ x 3.1″ x 9.7″ (239 x 80 x 247mm) Weight (Approx.) 9.92 lbs (4.5kg)
