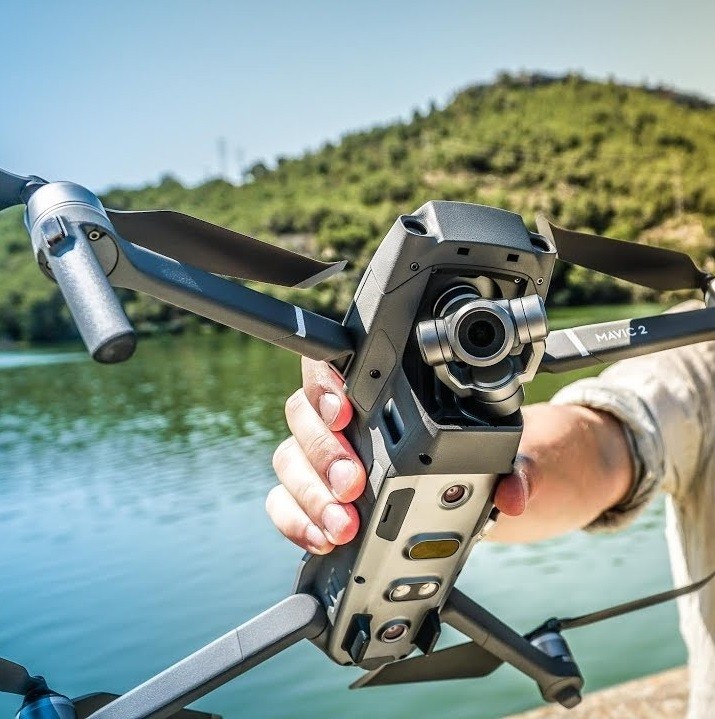

Mavic 2 Zoom

Specification General AIRCRAFT Takeoff Weight: 905g Dimensions Folded: 214 x 91 x 84 mm (length x width x height) Unfolded: 322 x 242 x 84 mm (length x width x height) Diagonal Distance: 354 mm Max Ascent Speed: 5 m/s (S-mode)                   4 m/s (P-mode) Max Descent Speed: 3 m/s (S-mode)                    3 m/s (P-mode) Max Speed (near sea level, no wind): 72 kph (S-mode) Max Service Ceiling Above Sea Level: 6000 m Max Flight Time (no wind): 31 minutes (at a consistent 25 kph) Max Hovering Time (no wind): 29 minutes Max Flight Distance (no wind): 18 km (at a consistent 50 kph) Max Wind Speed Resistance: 29–38 kph Max Tilt Angle: 35°(S-mode, with remote controller) 25° (P-mode) Max Angular Velocity: 200°/s Operating Temperature Range: -10°C - 40°C Operating Frequency: 2.400 - 2.483 GHz                      5.725 - 5.850 GHz Transmission Power (EIRP): 2.400 - 2.483 GHz FCC: ≤26 dBm  CE: ≤20 dBm  SRRC: ≤20 dBm MIC: ≤20 dBm 5.725-5.850 GHz FCC: ≤26 dBm  CE: ≤14 dBm SRRC: ≤26 dBm GNSS: GPS GLONASS Hovering Accuracy Range    Vertical: ± 0.1 m (when vision positioning is active) ± 0.5 m (with GPS positioning) Horizontal: ± 0.3 m (when vision positioning is active) ± 1.5 m (with GPS positioning) Internal Storage: 8GB   CAMERA Sensor: 1/2.3" CMOS Effective Pixels: 12 million Lens FOV: about 83°(24 mm); about 48° (48 mm) 35 mm Format Equivalent: 24-48 mm Aperture: f/2.8 (24 mm)–f/3.8 (48 mm) Shooting Range: 0.5 m to ∞ ISO Range Video: 100-3200 Photo: 100-1600 (auto) 100-3200 (manual) Shutter Speed: Electronic Shutter: 8–1/8000s Still Image Size: 4000 x 3000 Still Photography Modes Single shot Burst shooting: 3/5/7 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias Interval (JPEG: 2/3/5/7/10/15/20/30/60s RAW:5/7/10/15/20/30/60s) Video Resolution 4K: 3840×2160 24/25/30p  2.7K: 2688×1512 24/25/30/48/50/60p FHD: 1920×1080 24/25/30/48/50/60/120p Max Video Bitrate: 100Mbps Color Mode: D-Clinelike Supported File System: FAT32 (≤ 32 GB) exFAT (> 32 GB) Photo Format: JPEG / DNG (RAW) Video Format: MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)   GIMBAL Mechanical Range Tilt: -135–45° Pan: -100–100° Controllable Range Tilt: -90–30° Pan: -75–75° Stabilization: 3-axis (tilt, roll, pan) Max Control Speed (tilt): 120° /s Angular Vibration Range: ±0.005°   REMOTE CONTROLLER Operating Frequency: 2.400 - 2.483 GHz; 5.725 - 5.850 GHz Max Transmission Distance (unobstructed, free of interference) 2.400 - 2.483 GHz; 5.725 - 5.850 GHz FCC: 8000 m  CE: 5000 m  SRRC: 5000 m MIC: 5000 m Operating Temperature Range: 0°C - 40°C Transmission Power (EIRP): 2.400 - 2.483 GHz FCC: ≤26 dBm  CE: ≤20 dBm  SRRC: ≤20 dBm MIC: ≤20 dBm 5.725-5.850 GHz FCC: ≤26 dBm  CE: ≤14 dBm SRRC: ≤26 dBm Battery: 3950 mAh Operating Current/Voltage: 1800 mA = 3.83 V Supported Mobile Device Size: Max length: 160 mm; max thickness: 6.5–8.5 mm Supported USB Port Types: Lightning, Micro USB (Type-B), USB-C   INTELLIGENT FLIGHT BATTERY Capacity: 3850 mAh Voltage: 15.4 V Max Charging Voltage: 17.6 V Battery Type: LiPo 4S Energy: 59.29 Wh Net Weight: 297 g Charging Temperature Range: 5°C - 40°C Max Charging Power: 80W   CHARGER Input: 100-240 V, 50/60 Hz, 1.8A Output: Main: 17.6 V=3.41 A or 17.0 V=3.53 A  USB: 5 V=2 A Voltage: 17.6 ± 0.1 V Rated Power: 60W   SENSING SYSTEM Sensing System: Omnidirectional Obstacle Sensing1 Forward Precision Measurement Range: 0.5 - 20 m Detectable Range: 20 - 40 m Effective Sensing Speed: ≤ 14m/s FOV: Horizontal: 40°, Vertical: 70° Backward Precision Measurement Range: 0.5 - 16 m Detectable Range: 16 - 32 m Effective Sensing Speed: ≤ 12m/s FOV: Horizontal: 60°, Vertical: 77° Upward Precision Measurement Range: 0.1 - 8 m Downward  Precision Measurement Range: 0.5 - 11 m Detectable Range: 11 - 22 m Sides Precision Measurement Range: 0.5 - 10 m Effective Sensing Speed: ≤ 8m/s FOV: Horizontal: 80°, Vertical: 65° Operating Environment Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)   SUPPORTED SD CARDS Supported SD Cards: Micro SD Supporting Micro SD with capacity up to 128 GB and R/W speed up to UHS-I Speed Grade 3   APP Video Transmission System: OcuSync 2.0 Name: DJI GO 4 Live View Quality Remote Controller: 720p@30fps / 1080p@30fps DJI Goggles: 720p@30fps / 1080p@30fps DJI Goggles RE: 720p@30fps / 1080p@30fps Latency (depending on environmental conditions and mobile device): 120 - 130 ms Max Live View Bitrate: 40Mbps Required Operating System: iOS 9.0 or later Android 4.4 or later   Brand: DJI Item Name: DJI GOGGLES RE Weight (Typical): 502g Headband: 500g Goggles Size:19.5 X 15.5 X 11cm Headband (folded): 25.5 X 20.5 X 92cm Screen Size: 5-inch X 2 Screen Resolution: 3840 X 1080(Single Screen: 1920 X 1080) Transmitter Power (EIRP): 2.4 GHz: 25.5 dBm (FCC); 18.5 dBm (CE); 19 dBm (SRRC)  5.8 GHz: 25.5 dBm (FCC); 12.5 dBm (CE); 18.5 dBm (SRRC) Live View Modes: 1080p30, 720p60, 720p30 Video Format: MP4 (H.264) Supported Video Play Format: MP4, MOV, MKV  Video format: H264 Audio format: AAC-LC, AAC-HE, AC-3, DTS, MP3 Battery Capacity: 9440 mAh Operating Temperature Range: 32° To 104° F (0° To 40°C) Charger Input: 100-240 VAC,50/60 Hz,0.5A Output: 5V 3A/9V 2A/12V 1.5A   DJI OCUSYNC AIR SYSTEM Air Unit: 43.7g Camera (cable included): 18.2g  Pagoda Antenna: 9.4g Cylindrical Antenna: 9.4g Dipole Antenna: 4.2g Dimensions Air Unit: 72 X 33 X 14mm Camera: 29.4 X 28.2 X 22.6mm   DJI OCUSYNC CAMERA Communication Frequency: 2.4 GHz/5.8 GHz Transmitter Power (EIRP): 2.4 GHz: 22.5 dBm (FCC); 18.5 dBm (CE); 19 dBm (SRRC)  5.8 GHz: 25.5 dBm (FCC); 12.5 dBm (CE); 25.5 dBm (SRRC) Live View Modes and Min. Latency: 960p50:70ms / 720p60:60ms / 480p50:50ms Max. Transmission Distance 2.4 GHz: 7km(FCC) / 4km(CE) / 4km(SRRC) Max. Transmission Distance 5.8 GHz: 4km(FCC) / 0.7km(CE) / 4km(SRRC) Recommended Frequency Band: 5.8GHz / CE:2.4GHz / SRRC:5.8GHz Video Format: MP4 (MPEG4) I/O Interface: S.Bus, Micro USB, PPM, UART, MMCX, Micro SD card slot Supported Flight Control System: F3, F4, KISS, NAZE Supported Remote Controller: X9D(Frsky)/DEVO 10(Walkera)/T8FG(Futaba)/T14SG(Futaba)/WTF09sll(WFLY)/                                            AT9S(RadioLink) Operating Temperature Range: 32°To 104°F(0°To 40°C) Input Power: 9 - 16.8V (3S-4S) Sensor: 1/3 CMOS Effective pixels: 1.2M Lens: 2.65mm f/2.0 Lens Group: 6G IR Shutter: Global Shutter ISO: 100 - 3200 FOV: 148°(D) / 111°(H) / 79.5°(V)   A DJI Goggles - Micro USB OTG Cable is required when working with Spark. A DJI Goggles - HDMI (Type A) Female to HDMI (Type C) Male Adaptor is required when working with Inspire 1 series. Package Contents 1 x Aircraft 1 x Remote Controller 1 x Intelligent Flight Battery 1 x Charger 1 x Power Cable 3 x Propellers(Pair) 1 x RC Cable(Lightning Connector) 1 x RC Cable(Stabdard Micro USB Connetor) 1 x RC Cable(USB Type-C Connetor) 1 x Gimbal Protector 1 x Communication Cable(USB3.0 Type-C) 1 x USB Adapter 1 x RC Cable Slider(Large) 2 x RC Cable Slider(Small) 1 x Spare Control Sticks(Pair)   1 x DJI Goggles Racing Edition 1 x Charger 1 x Wire Clip 2 x Pagoda Antenna(SMA Interface) 1 x Reversed SMA Connector 1 x Micro USB Cable 1 x HDMI Cable 1 x Cleaning Cloth
