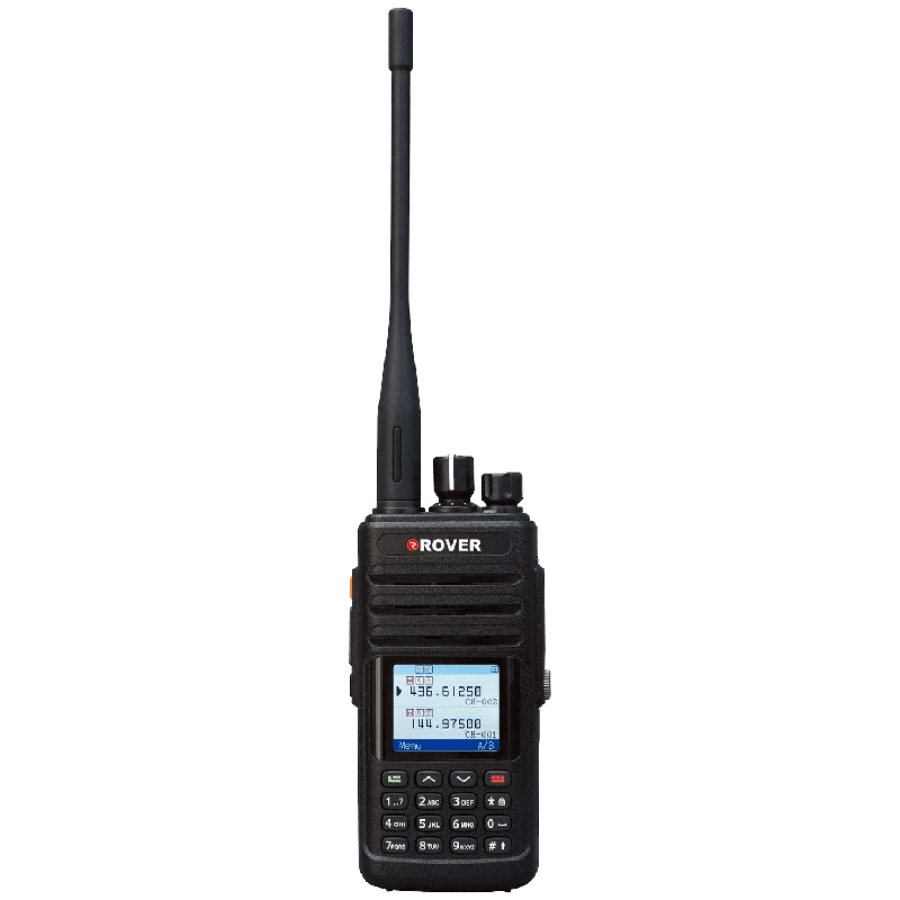

Description General Rover Walkie Talkie R-5WP Overview: Frequency Range: VHF & UHF Frequency Stability: ±2.5ppm Channel Capacity: 256 channels Operating Voltage: DC 7.2V Antenna: High-gain antenna Mode of Operation: Same or different frequency simplex Dimensions (H x W x D): 121 x 59 x 34mm Transmitter Specifications: RF Power: High ≤10W, Low ≥ 5W Modulation Type (Wide/Narrow Band): 16KF3E / 11KF3E Max Frequency Deviation (Wide/Narrow Band): ≤ 5KHz / ≤ 2.5KHz Adjacent Channel Power: ≤ -65dB / ≤ -60dB Spurious Power: ≤ 7µW Pre-emphasis Character: 6dB for each frequency doubling the increment
