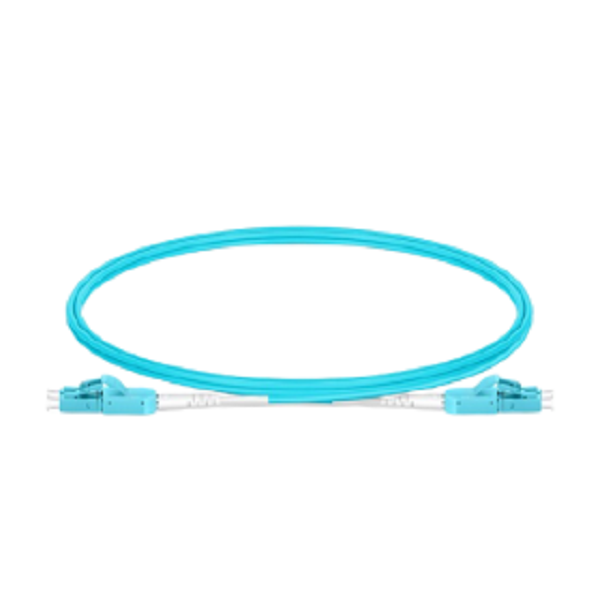

1m (3ft) LC UPC to LC UPC Uniboot Duplex OS2 Single Mode PVC (OFNR) 2.0mm BIF Fiber Optic Patch Cable #68485 Supplier in Doha Qatar
$23.51
$39.97
Uniboot Standard LC-LC Bend Insensitive Fiber Patch Cable The uniboot connector allows two fibers to be carried through a single jacket. This reduces the surface area of the cable when compared to standard duplex cables, allowing this cable to facilitate improved airflow within a data center. Description Connector Type LC UPC to LC UPC Fiber Grade 657. A1(Compatible with G. 652. D) Fiber Mode OS2 9/125μm Durability 500 Cycles Insertion Loss ≤0.2dB Return Loss ≥50dB Attenuation at 1310nm 0.4 dB/km Attenuation at 1550nm 0.25 dB/km Fiber Count Duplex Cable Diameter 2.0mm Min. Bend Radius (Fiber Core) 10mm Min. Bend Radius (Fiber Cable) 10D/5D (Dynamic/Static) Tensile Strength (Long Term/Short Term) 60N/100N Cable Jacket PVC Operating Temperature -20 to 70°C Storage Temperature -40 to 80°C
