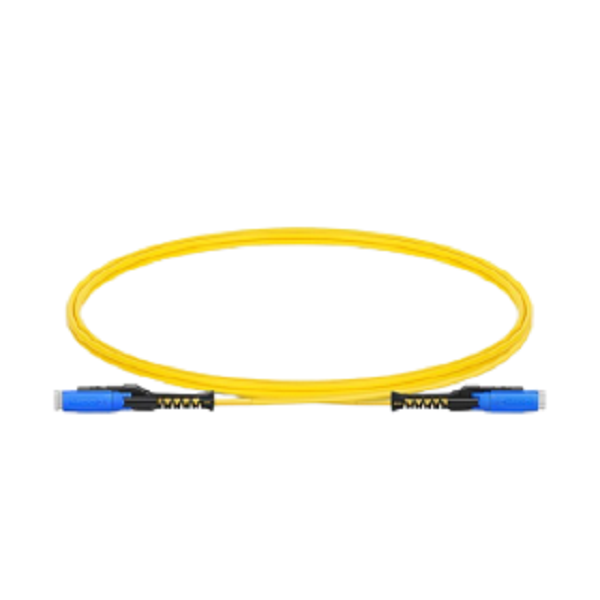

1m (3ft) LC UPC to LC UPC Flat Clip Uniboot Duplex OS2 Single Mode PVC (OFNR) 2.0mm BIF Fiber Optic Patch Cable #72166 Supplier in Doha Qatar
$33.03
$63.42
Uniboot LC-LC, Bend Insensitive Fiber Patch Cable The uniboot design allows one cable to carry both fibers, reducing cable congestion when routing. It is suitable to be used in high-density fiber patching in data centers which need space saving and reduce cable management troubles. The slim structure of the flat clip connector Provide additional space between connectors and improves airflow. Its reverse-polarity design allows for quick and easy polarity conversion without exposing the fibers or needing any tools. Description Connector Type LC UPC to LC UPC Fiber Grade Corning BIF Fiber Fiber Mode OS2 9/125μm Wavelength 1310/1550nm Insertion Loss ≤0.2dB Return Loss ≥50dB Attenuation at 1310 nm 0.4 dB/km Attenuation at 1550 nm 0.25 dB/km Fiber Count Duplex Cable Diameter 2.0mm Min. Bend Radius (Fiber Core) 10mm Min. Bend Radius (Fiber Cable) 10D/5D (Dynamic/Static) Tensile Strength (Long Term/Short Term) 60N/100N Cable Jacket PVC Durability 500 Cycles Polarity A (Tx) to B (Rx) Operating Temperature -20 to 70°C Storage Temperature -40 to 80°C
