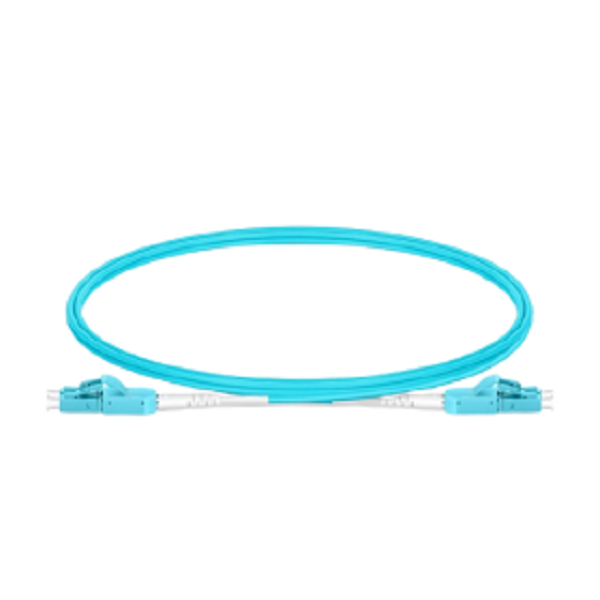

Uniboot LC-LC, Bend Insensitive Fiber Patch Cable The uniboot design allows one cable to carry both fibers, reducing cable congestion when routing. It is suitable to be used in high-density fiber patching in data centers which need space saving and reduce cable management troubles. The slim structure of the flat clip connector Provide additional space between connectors and improves airflow. Its reverse-polarity design allows for quick and easy polarity conversion without exposing the fibers or needing any tools. Description Connector Type LC UPC to LC UPC Fiber Grade Corning BIF Fiber Fiber Mode OM4 50/125μm Wavelength 850/1300nm Insertion Loss ≤0.2dB Return Loss ≥20dB Attenuation at 850nm 3.0 dB/km Attenuation at 1300nm 1.5 dB/km Fiber Count Duplex Cable Diameter 2.0mm Min. Bend Radius (Fiber Core) 7.5mm Min. Bend Radius (Fiber Cable) 20D/10D (Dynamic/Static) Tensile Strength (Long Term/Short Term) 60N/100N Cable Jacket PVC Durability 500 Cycles Polarity A (Tx) to B (Rx) Operating Temperature -20 to 70°C Storage Temperature -40 to 80°C
