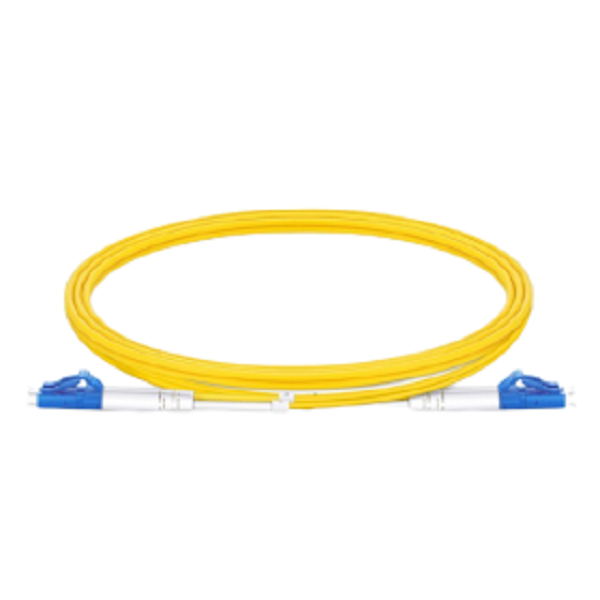

1m (3ft) Grade B LC UPC to LC UPC Duplex Typical 0.12dB IL OS2 Single Mode PVC (OFNR) 2.0mm BIF Fiber Optic Patch Cable #68294 Supplier in Doha Qatar

Grade B LC UPC to LC UPC 9/125 Single Mode Bend Insensitive Fiber Patch Cable IEC 61753-1 random mating specified grade B (≤0.12dB mean, ≤0.25dB max for >97% of sample), meet large bandwidth and high speed requirements of the latest active optical equipment allowing large streams of data to be transmitted reliably over long distances. Corning bend insensitive fiber cable ensures less attenuation when bent or twisted compared with traditional fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. Description Fiber Connector LC UPC to LC UPC Fiber Mode SMF 9/125μm Fiber Grade G.657.A1 Fiber Jacket 2.0mm, PVC Attenuation Grade Grade B Return Loss ≥50dB Typical Insertion Loss ≤0.12dB Max Insertion Loss ≤0.25dB Fiber Count Duplex Durability 500 Cycles Min. Bend Radius (Fiber Core) 10mm Min. Bend Radius (Fiber Cable) 10D/5D (Dynamic/Static) Operating Temperature -20 to 70°C Storage Temperature -40 to 80°C
