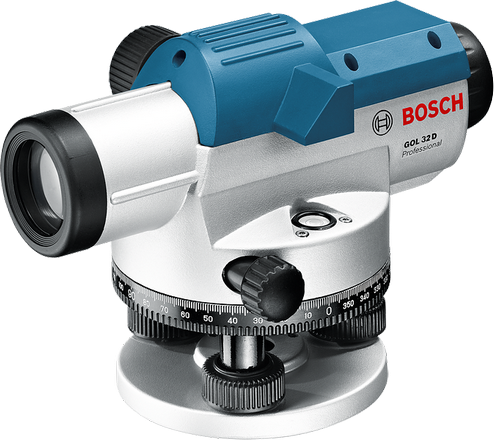

Robust and reliable – ideal for outdoor use 1 Ideal for outdoor use due to a robust housing with dust and splash protection (IP54) 2 Fast aperture for a sharp image of the target 3 Compensator lock for safe transport Details for GOL 32 D Professional Specification Part number 0 601 068 500 EAN code 3165140711388 GOL 32 D Professional comes complete with: Item Included Adjusting pin Allen key Carrying case 1 600 A00 0LF Lens cover Plumb bob Tool features Why this tool? Target collimator for rough alignment Penta prism makes it easy to read the circular vial Erect image Large focusing knob for easy alignment Fast aperture for a sharp image of the target (measuring rod) Endless gon/angle setting using knobs with friction-braked rotation Technical data Specification overview Unit of measure 360 degrees Magnification 32 x Accuracy 1 mm at 30 m Working range 120 m Dust and splash protection IP 54 Tripod thread 5/8" Operating temperature -10 – 50 °C Storage temperature -20 – 70 °C Weight, approx. 1.5 kg Levelling accuracy 1.6 mm - 30 m Measuring accuracy of 1.6 mm/30 m Dual levelling element Prevent errors due to dual levelling element Magnification 32x Magnification up to 32x Working range 120 m Range up to max. 120 m Find dealers
