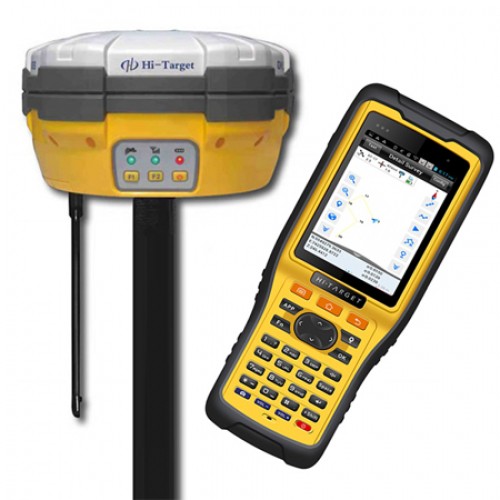

HI-target V30 PLUS

V30 upgrade version , compact size, 8GB internal storage Key features: 1)High technology GNSS engine 2) Support GPS, GLONASS, BDS, GALLILEO 3) Rugged design and user-friendly functions Communications: 1)3G Built-in 3G module,support WCDMA/HSDPA/EDGE/GPRS Network RTK (via CORS) range 20-50km 2)HI-TARGET internal UHF radio (standard) Frequency :460 MHz with 116 channels Transmitting power :0.1W, 1W, 2W adjustable Transmitting Speed :Up to 19.2Kbps Working range: 3~5Km typical, 8~10km optimal 3)HI-TARGET External UHF radio (standard) Frequency : 460 MHz with 116 channels Transmitting power : 5W, 10W, 20W, 30W adjustable Transmitting Speed : Up to 19.2Kbps Working Range : 8~10Km typical, 15~20km optimal  Support other external communication device For example, external GSM modem Specifications: Model V30 plus System Configuration Data storage 8GB internal memory Data Formats  1Hz positioning output, up to 50 Hz - depends on installed option CMR: sCMRx,CMR,CMR input and output RTCM: RTCM 2.1, 2.2, 2.3, 3.0, 3.1,3.2 input and output Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS Navigation outputs binary: GSOF,1 Pulse Per Second Output Satellite Signals Tracked Simultaneously  Channels 220,Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology BDS B1, B2,B3 GPS L1, L2C/P, L5 GLONASS Simultaneous L1, L2 SBAS Simultaneous L1, C/A, L5(EGNOS, WAAS, MSAS, GAGAN, QZSS) Static and Fast Static GNSS Surveying Horizontal  2.5mm 0.5ppm RMS  Vertical  5mm 0.5ppm RMS Post Processing Kinematic (PPK / Stop & Go) GNSS Surveying  Horizontal 1cm 1ppm RMS Vertical  2.5cm 1ppm RMS  Initialization time  Typically 10 minutes for base while 5minutes for rover Initialization reliability Typically > 99.9%  RealtimeKinematic(RTK) surveying Horizontal 8mm 1ppm RMS Vertical  15mm 1ppm RMS Initialization time  Typically < 8seconds  Initialization reliability Typically > 99.9%  Code Differential GNSS Positioning  Horizontal 25cm 1ppm RMS Vertical  50cm 1ppm RMS  SBAS 0.50m Horizontal, 0.85m Vertical  Power and Battery Power 6V to 28V DC external power input,Power consumption ≤3.5W Internal battery Rechargeable, removable 7.4V, 5000mAh Lithium-ion battery Internal battery life static:13 - 15 hours RTK Rover (UHF/GPRS/3G) 10 - 12 hours RTK Base 8 - 10 hours I/O Interface  1 xBluetooth, 1 x standard USB2.0 port,2 x RS232 serial port ,2x DC power input (8-pin & 5-pin) Physical Dimensions (W x H)  164mm x 83.5mm Weight 1.4kg with internal battery, internal radio,standard UHF antenna Operating temperature -45ºCto 65ºC (-49ºF to 149ºF)  Storage temperature -55ºC to 85ºC(-67ºF to 185ºF)  Humidity  100%, considering  Water/dustproof IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).  Shock and vibration Designed to survive a 3m(9.84ft) natural fall onto concrete.
