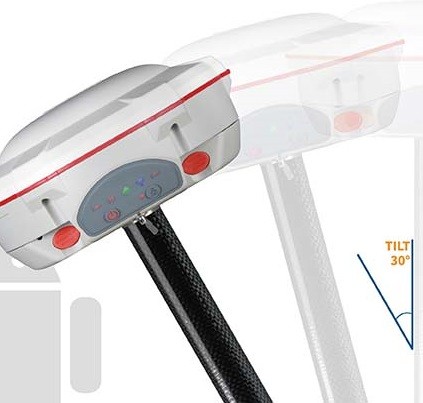

Featuring full-constellation tracking capability, tilt compensation, 4G/WiFi connection, 8 GB internal memory and easy survey workflow with Android-based Survey Master Software, the T300 Plus GNSS receiver is one of the most reliable choices for your demanding surveying tasks. Collect accurate data easier and faster no matter for beginners or professional surveyors. · GPS L1/L2/L5, BeiDou B1/B2/B3, GLONASS L1/L2, Galileo, SBAS · Advanced QUANTUMTM · Technology WIFI/UHF/4G Modem · Tilt Compensation · Smart Battery Design · Low Power Consumption · Support Long Baseline E-RTK Signal Tracking Channels 572 GPS L1, L2, L2C, L5 BeiDou B1, B2, B3 GLONASS L1, L2 Galileo E1, E5a, E5b QZSS Reserved SBAS WAAS, EGNOS, MSAS, GAGAN Performance Specifications Cold start <50s Warm start <30s Hot start <15s Initialization time 10s Signal re-acquisition <1.5s Initialization reliability Typically>99.9% Positioning Specifications Post Processing Static Horizontal: 2.5 mm 1 ppm RMS Vertical: 5 mm 1 ppm RMS Real Time Kinematic Horizontal: 8 mm 1 ppm RMS Vertical: 15 mm 1 ppm RMS E-RTK (<100km) Horizontal: 0.2 m 1 ppm RMS Vertical: 0.4 m 1 ppm RMS DGPS < 0.4 m RMS SBAS 1 m 3D RMS Standalone 1.5 m 3D RMS Communications Communication port Radio modem Tx/Rx with full frequency range from 410-470MHz Transmit power: 0.5-2W adjustable Range: 1-5km WIFI/4G modem 4G Bands: 800/900/1800/2100/2600 MHz 3G Bands: 900/2100 MHz 2G Bands: 900/1800 MHz Support GSM, Point to Point/Points and NTRIP Positioning data outputs 1HZ, 2HZ, 5HZ, 10HZ, 20HZ Indicating light 5 LEDs (indicating Power, Satellite Tracking, GPRS Status and Differential Data) Bluetooth® V 4.0 protocol, compatible with Windows OS and Android OS Sensor Tilt sensor Data Format Data inputs/outputs Correction data I/O: RTCM2.x, 3.x,CMR(GPS only), CMR (GPS only) Position data outputs ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST, PJK, PTNL ComNav Binary update to 20Hz Physical Size(W×H) 15.8cm×7.5cm Weight 0.95kg(include two batteries) Environmental Operating temperature -40 °C to 65 °C (40°F to 149°F) Storage, , , , temperature -40 °C to 85°C (40°F to 185°F) Humidity 100% non-condensing Waterproof and dust proof IP67 protected from temporary immersion to depth of 1 meter, floats Shock Survives a 2-meter drop on to concrete Electrical Input Voltage 5-27 VDC Power consumption 3.1 W(3 constellations) Li-ion battery capacity 2x2000 mAh, Up to 9 hours typically Memory 8 GB internal memory (16 GB and 32 GB is optional) Software CGSurvey ComNav’s field data collection software Survey Master ComNav’s Android-based field data collection software FieldGenius (optional) MicroSurvey’s FieldGenius field data collection software SurvCE (optional) Carlson’s field data collection software Signal Tracking Channels 572 GPS L1, L2, L2C, L5 BeiDou B1, B2, B3 GLONASS L1, L2 Galileo E1, E5a, E5b QZSS Reserved SBAS WAAS, EGNOS, MSAS, GAGAN Performance Specifications Cold start <50s Warm start <30s Hot start <15s Initialization time 10s Signal re-acquisition <1.5s Initialization reliability Typically>99.9% Positioning Specifications Post Processing Static Horizontal: 2.5 mm 1 ppm RMS Vertical: 5 mm 1 ppm RMS Real Time Kinematic Horizontal: 8 mm 1 ppm RMS Vertical: 15 mm 1 ppm RMS E-RTK (<100km) Horizontal: 0.2 m 1 ppm RMS Vertical: 0.4 m 1 ppm RMS DGPS < 0.4 m RMS SBAS 1 m 3D RMS Standalone 1.5 m 3D RMS Communications Communication port Radio modem Tx/Rx with full frequency range from 410-470MHz Transmit power: 0.5-2W adjustable Range: 1-5km WIFI/4G modem 4G Bands: 800/900/1800/2100/2600 MHz 3G Bands: 900/2100 MHz 2G Bands: 900/1800 MHz Support GSM, Point to Point/Points and NTRIP Positioning data outputs 1HZ, 2HZ, 5HZ, 10HZ, 20HZ Indicating light 5 LEDs (indicating Power, Satellite Tracking, GPRS Status and Differential Data) Bluetooth® V 4.0 protocol, compatible with Windows OS and Android OS Sensor Tilt sensor Data Format Data inputs/outputs Correction data I/O: RTCM2.x, 3.x,CMR(GPS only), CMR (GPS only) Position data outputs ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST, PJK, PTNL ComNav Binary update to 20Hz Physical Size(W×H) 15.8cm×7.5cm Weight 0.95kg(include two batteries) Environmental Operating temperature -40 °C to 65 °C (40°F to 149°F) Storage, , , , temperature -40 °C to 85°C (40°F to 185°F) Humidity 100% non-condensing Waterproof and dust proof IP67 protected from temporary immersion to depth of 1 meter, floats Shock Survives a 2-meter drop on to concrete Electrical Input Voltage 5-27 VDC Power consumption 3.1 W(3 constellations) Li-ion battery capacity 2x2000 mAh, Up to 9 hours typically Memory 8 GB internal memory (16 GB and 32 GB is optional) Software CGSurvey ComNav’s field data collection software Survey Master ComNav’s Android-based field data collection software FieldGenius (optional) MicroSurvey’s FieldGenius field data collection software SurvCE (optional) Carlson’s field data collection software
