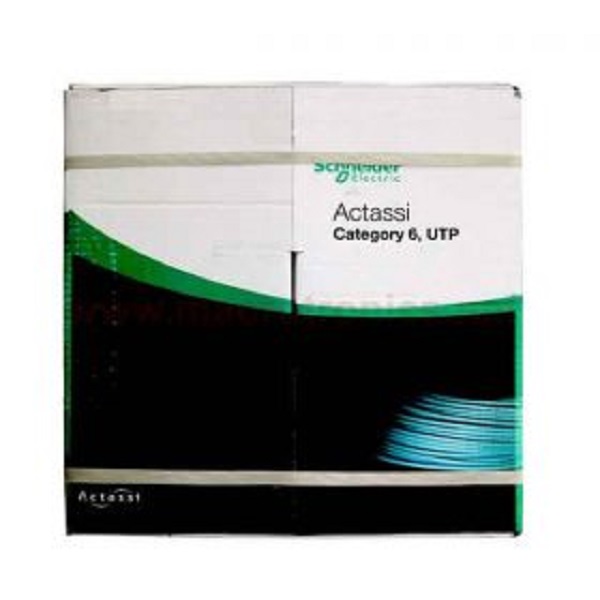

Schneider electric UTP CAT 6 CABLE SCHNEIDER 305 MTR BOX Category 6 UTP PVC Cables The Actassi 4-Pair Category 6 Cable is a superior product delivering excellent network performance when used in conjunction with other Actassi Category 6 products. The Category 6 cable consists of 4 pairs of solid insulated copper 24AWG and is UL listed with a CM fire rating. It is designed for use in horizontal cabling situations and supplied in 305m (1,000ft) easy pull out boxes. The Category 6 cable provides a significant margin above the minimum Category 6 Near End Crosstalk NEXT requirement of ANSI/TIA and ISO/IEC 11801. PRODUCT FEATURES • Centrefiller tomaintainpair twistingandoptimumNEXTand ELFEXT performance. • 24AWG conductors for improvedInsertionLossperformance. CUSTOMER BENEFITS • ExceedsCategory6 ANSI/TIA -568-C.2andISO/IEC11801 Standards. • Supports GigabitEthernet (1000Base-Tand1000Base-TX) and beyond. CATALOGUE NUMBER DESCRIPTION PVC Cables ACT4P6UCM3RBBU4 Category64pair UTPCable305m,CM Blue CONSTRUCTION Cable Conductor Solid Bare Copper AWG 24 Insulation PE Average Thickness ( mm) 0.19mm Insulation Diameter (±0.10mm) 0.88 ± 0.10mm Filler PE Jacket FR-PVC Average Thickness (±0.05mm) 0.50 ± 0.01mm Outer Diameter (±0.2mm) 5.7mm Rip Cord Yes
