$30.64
$45.35

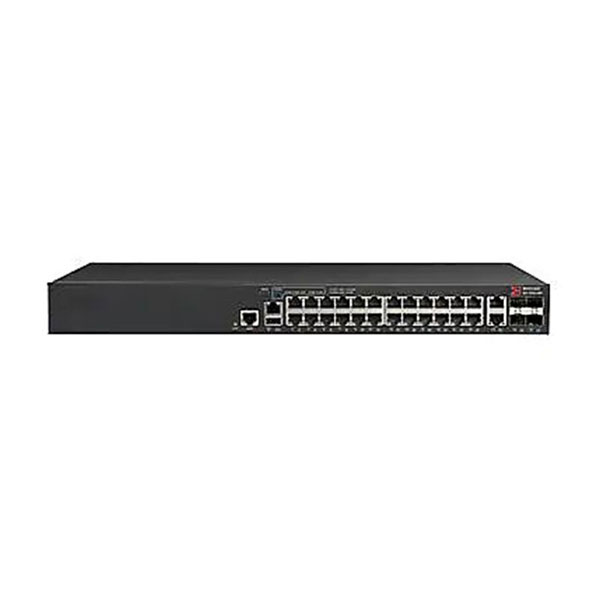

ICX7150-24P-4X10GR specification General Device Type Switch – 24 ports – L3 – managed – stackable Enclosure Type Front and side to back rack-mountable 1U Subtype Gigabit Ethernet Ports 24 x 10/100/1000 (PoE ) 2 x 10/100/1000 (uplink) 2 x Gigabit SFP 2 x 10 Gigabit SFP (uplink) Power Over Ethernet (PoE) PoE PoE Budget 370 W Performance Switching capacity: 132 Gbps ¦ Forwarding performance: 98 Mpps ¦ Stacking bandwidth: 320 Gbps Capacity Virtual interfaces (VLANs): 4095 ¦ Spanning Tree Protocol instances: 254 ¦ ARP entries: 2048 ¦ QoS hardware queues: 8 MAC Address Table Size 16384 entries Jumbo Frame Support 9216 bytes Max Units In A Stack 8 Routing Protocol RIP-1, RIP-2, static IPv4 routing, static IPv6 routing, RIPng Remote Management Protocol Telnet, SNMP 3, HTTP, HTTPS, TFTP, CLI, SCP Encryption Algorithm AES Authentication Method RADIUS, TACACS, TACACS , Secure Shell v.2 (SSH2) Features Flow control, DoS attack prevention, DiffServ support, Weighted Round Robin (WRR) queuing, IPv6 support, sFlow, Virtual Cable Test (VCT) technology, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Trusted Platform Module (TPM), IPv4 support, DHCP relay, Class of Service (CoS), Strict Priority (SP), tagged VLAN, 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, OpenFlow support, Network Timing Protocol (NTP) Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1BR RAM 1 GB Flash Memory 2 GB Expansion / Connectivity Interfaces 24 x 1000Base-T RJ-45 12 ports (PoE ) / 24 ports (PoE) ¦ 2 x 1000Base-T RJ-45 uplink ¦ 1 x management RJ-45 ¦ 1 x console RJ-45 ¦ 1 x USB-C management ¦ 2 x Gigabit LAN SFP upgradable to 10G ¦ 2 x 10Gbit LAN SFP uplink/stacking Power Power Device Internal power supply Installed Qty 1 (installed) / 1 (max) Power Provided 525 Watt Voltage Required AC 120/230 V (50/60 Hz) Miscellaneous Compliant Standards FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN50081-1, EN55022, ICES-003, EN 61000-3-3, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, RoHS, EN 61000-6-3, EN 60825-2, IEC 60950-1 Second Edition, VCCI Class A, EN 60950-1:2006, AS/NZS 55022, IEC 60068-2-36 Dimensions Width 17.3 in Depth 11 in Height 1.7 in Manufacturer Warranty Service & Support Limited warranty – lifetime Environmental Parameters Min Operating Temperature 23 °F Max Operating Temperature 122 °F Humidity Range Operating 5 – 95% (non-condensing) Min Storage Temperature -13 °F Max Storage Temperature 158 °F Humidity Range Storage 0 – 95% (non-condensing)
Ruckus Switches
