1 x 4 PLC Fiber Splitter, Standard LGX Cassette, SC/APC, Singlemode #121404 Supplier in Doha Qatar
$18.63
$25.52

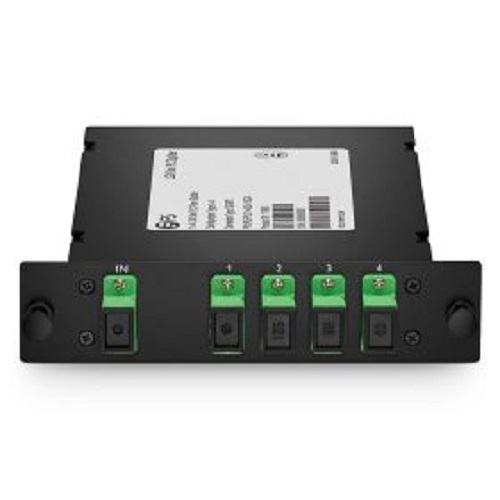

1×4 Fiber PLC Splitter with Standard LGX Metal Box, SC/APC Planar Lightwave Circuit (PLC) Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Description Package Style LGX Box Configuration Type 1×4 Fiber Grade G.657A1 Fiber Mode Singlemode Connector Type SC/APC Split Ratio 50/50 Insertion Loss ≤7.3dB Return Loss ≥55dB Loss Uniformity ≤0.6dB Directivity ≥55dB Polarization Dependent Loss ≤0.2dB Temperature Dependent Loss ≤0.5dB Wavelength Dependent Loss ≤0.3dB Operating Bandwidth 1260~1650nm Dimensions (HxWxD) 1.14″x6.18″x5.08″ (29x157x129mm) Temperature Operating -40 to 85°C (-40 to 185°F) Storage -40 to 85°C (-40 to 185°F)
