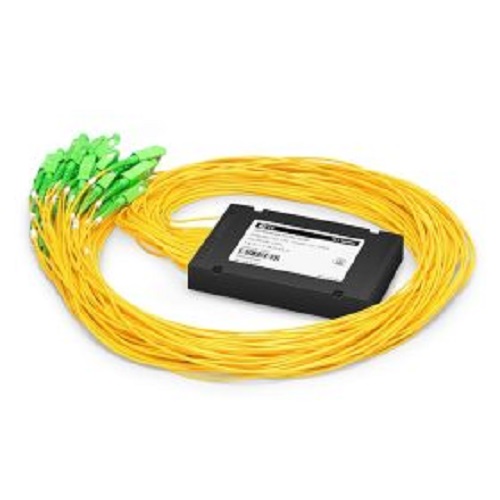

1 x 32 PLC Fiber Splitter, Splice/Pigtailed ABS Module, 2.0mm, SC/APC, Singlemode #11620 Supplier in Doha Qatar

1×32 Fiber PLC Splitter, ABS Box Type, Singlemode, SC/APC Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It’s mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets. Description Package Style ABS Module Configuration Type 1×32 Fiber Grade G.657A1 Fiber Mode Singlemode Connector Type SC/APC Split Ratio 50/50 Input/Output Fiber Diameter 2.0mm Input/Output Fiber Length 1.5m Insertion Loss ≤17.0dB Return Loss ≥55dB Loss Uniformity ≤1.5dB Directivity ≥55dB Polarization Dependent Loss ≤0.3dB Temperature Dependent Loss ≤0.5dB Wavelength Dependent Loss ≤0.5dB Operating Bandwidth 1260~1650nm Dimensions (HxWxD) 0.71″x4.72″x3.15″ (18x120x80mm) Temperature Operating -40 to 85°C (-40 to 185°F) Storage -40 to 85°C (-40 to 185°F)
