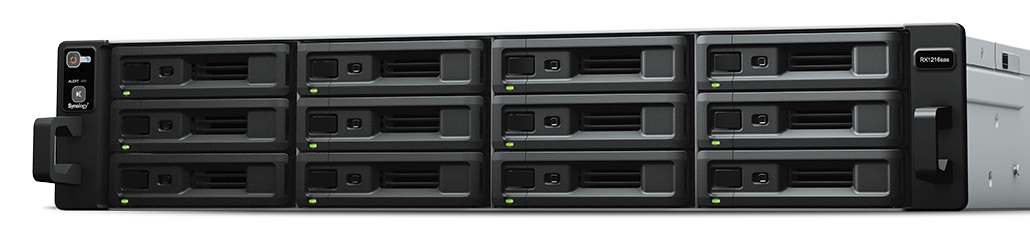

SYNOLOGY 12-BAY EXP EXPANSION UNIT RX1216SAS
$ 98.61
Description Reviews (0) Description Share this: WhatsApp Facebook Twitter Pinterest LinkedIn Applied Models Supports creating volumes across different units RS18016xs Notes To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit. Storage Drive Bays 12 Compatible Drive Type* (See all supported drives) 3.5″ SAS HDD 2.5″ SAS HDD 2.5″ SAS SSD 3.5″ SATA HDD 2.5″ SATA HDD 2.5″ SATA SSD Maximum Internal Raw Capacity 192 TB (16 TB drive x 12) (Capacity may vary by RAID types) Hot Swappable Drive YES RAID Management through Synology DSM YES Notes Storage Pool and volume creation require all drives to be listed as compatible on the device model’s compatibility list. External Ports SAS IN-port 2 SAS OUT-port 2 Appearance Size (Height x Width x Depth) 88 mm x 430.5 mm x 692 mm Size (Height x Width x Depth) (with server ears) 88 mm x 482 mm x 724 mm Weight 13.5 kg Rack Installation Support* 4-post 19″ rack (Synology Rail Kit – RKS1317) Notes The rail kit is sold separately Power Power Recovery Synchronized with the Synology RackStation Power Supply Unit / Adapter 500 W AC Input Power Voltage 100 V to 240 V AC Power Frequency 50/60 Hz, Single Phase Power Consumption* 67.31 W (Access) 34.05 W (HDD Hibernation) British Thermal Unit 229.84 BTU/hr (Access) 116.25 BTU/hr (HDD Hibernation) Redundant Power Supply (for RP model) YES Notes Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Temperature Operating Temperature 5°C to 35°C (40°F to 95°F) Storage Temperature -20°C to 60°C (-5°F to 140°F) Relative Humidity 5% to 95% RH Others System Fan 80 mm x 80 mm x 4 pcs Easy Replacement System Fan YES Noise Level* 45.1 dB(A) Notes Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% Certification FCC CE BSMI Warranty 5 Years Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) Environment & Packaging Environment RoHS Compliant Packaging Content Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Expansion Cable: MiniSAS X 2 Quick Installation Guide X 1 Optional Accessories 2.5″ SATA SSD: SAT5200 Rail Kit Sliding: RKS1317 Share this: WhatsApp Facebook Twitter Pinterest LinkedIn
